14,490 RSD (Sa PDV-om)
Industrijski HMI ekran 10.1 inč za Raspberry Pi 4/5, touch, metal, 1280×800
1 na zalihama
Opis
Oglas samo za ekran. Možete ugraditi RPi 4 ili RPi 5 ploču. Link
Oglas za isti displej sa napajanjem i mem.karticom sa OS. Link
Oglas sa RPi 5 pločom, napajanjem, karticom. Link
Oglas sa RPi 4 pločom, napajanjem, karticom. Link
SKU: 31551
Part No.: RPI-HMI-101D-ACCE-B
Brand: Waveshare
Korisne inforacije: www.waveshare.com/wiki/RPI-HMI-080D-101D

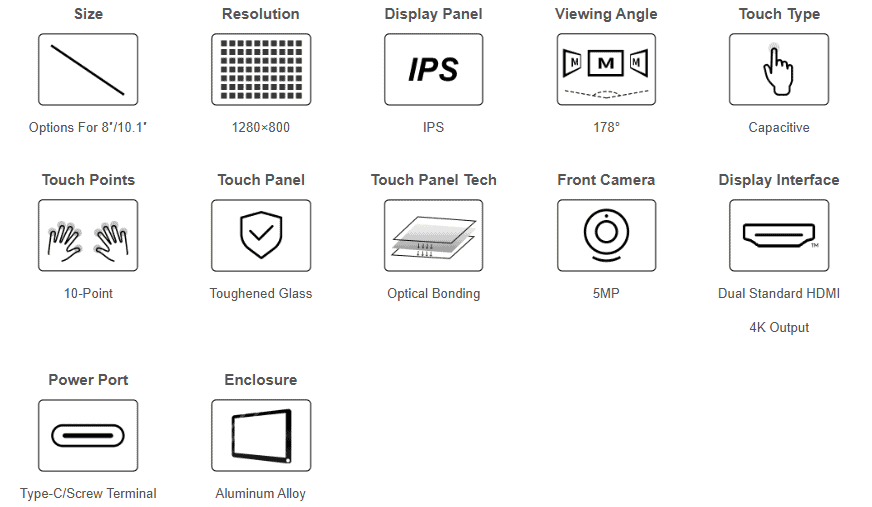

Industrial HMI All-in-one touch Display for Raspberry pi
High Resolution | 10-point Touch | Aluminum alloy case
RPI-HMI-080D/101D-ACCE-BTouch Display + Accessories pack only, without Power Supply and TF Card
(the Power Supply and TF Card and Raspberry Pi is NOT included)
Toughened Glass Panel
Sensitive touch control with High Resolution display, durable design
5MP front camera
For Accurate face recognition, ensuring safety every moment
10-Point Capacitive Touch
- up to 10-point touch, depending on the operating system
- up to 6H hardness toughened glass panel
- Optical bonding, display well and dustproof
Adjustable brightness via software
Excellent heat dissipation
Full Metal Enclosure with efficient heat dissipation, Pure passive cooling, no fan noise worries
Two power supply methods
Supports power supply via screw terminal or USB Type-C Port
VESA Mounting Support
Easily adaptable to various monitor arms, enjoy a flexible installation experience
* Note: the monitor arm is NOT included, please refer to the package content for the detailed part list.
Interface Introduction
- 5V Type-C power port
- Standard HDMI Interface x 2
- USB3.0 port x 2
- USB2.0 port x 2
- Gigabit Ethernet connector
- TF card slot
- Power button
- Power indicator
- 5V Power supply screw terminal (3.81mm pitch)
- Debugging serial port
Dimensions
10.1inch version
Package content:
Weight: 1.997 kg
RPI-HMI-101D-ACCE-B
- 10.1inch touch display x1
- Mounting buckle (4PCS) x1
- Screws pack x1
- 5W thermal pad 16*16*1mm x1
- Pi5-HMI Accessories Pack:
- PI5 side panel x1
- Aluminum alloy heatsink x1
- DSI-Cable-12cm x1
- Silicon button x1
- Camera cable -15cm x1
- Pi4-HMI Accessories Pack:
- PI4 side panel x1
- Copper heatsink x1
- FFC 15PIN 1.0 pitch ~160mm x2
Dodatne informacije
| Težina | 1349 g |
|---|
Deklaracija
| Šifra: w31551 |
| Naziv: RPI-HMI-101D-ACCE-B |
| Vrsta: Waveshare |
| Zemlja porekla: Kina |
| Zemlja uvoza: Kina |
| Uvoznik: MALINA 314 doo, Beograd |
| Telefon: 061-640-2013 |
