11,599 RSD (Sa PDV-om)
Industrijski PC za CM5, dual ETH, M.2 slot, M.2 B key slot, RS485, IPCBOX-CM5-A
Nema na stanju
Opis
SKU: 34121
Part No.: IPCBOX-CM5-A (EU)
Brand: Waveshare
Korisne informacije: docs.waveshare.com/IPCBOX-CM5-A
Dual Ethernet Industrial Computer based on Raspberry Pi CM5
Designed for Raspberry Pi Compute Module 5
Version Options
IPCBOX-CM5-A
Dual Ethernet ports, onboard 4 × RS485 interfaces
All versions come with an aluminum alloy case and power supply adapter, please refer to the package content for the detailed part list.
Specifications
| CM5 socket | Suitable for all variants of Compute Module 5 |
|---|---|
| Networking | 1000M Ethernet RJ45 port × 1 2500M Ethernet RJ45 port × 1 |
| USB | USB 3.2 Gen1 port × 1 |
| USB 2.0 port × 3 | |
| Video | HDMI interface × 1, supports 4K display output |
| M.2 | M.2 M KEY (PCIe Gen2/3 × 1, 2230 / 2242) |
| M.2 B KEY, supports connecting 4G / 5G communication module | |
| Storage | TF card socket for Compute Module 5 Lite (without eMMC) variants |
| Serial Interface | 4 × RS485 |
| 1 × CAN with up to 1Mbps communication rate | |
| Digital Input/Output | 2 × digital outputs + 2 × digital inputs |
| Audio | 3.5mm audio jack (microphone support), PH2.0 speaker header |
| Fan header | 5V, 4PIN JST-SH PWM fan header |
| Buzzer | 1-ch controllable buzzer |
| Other | Onboard EEPROM and encryption chip |
| Power Input | 7V ~ 36V wide voltage range screw terminal, 5V 5A Type-C port |
| Dimensions | 136.00 × 92.00 × 39.50 (mm) |
Connecting with Compute Module 5
standard CM5 socket suitable for Compute Module 5 Lite / eMMC series module
* for reference only, please refer to the package content for detailed part list
4G / 5G module compatibility
compatible with communication modules with M.2 B KEY interface
* An additional communication module is required to enable 5G/4G/3G/2G cellular network function, recommended: SIM7600G-H-M.2, SIM8260G-M2, and SIM8262E-M2.
Supports connecting to M.2 NVMe Drive
Faster reading/writing speed compared to the TF card slot of Raspberry Pi, greatly improving reading/writing efficiency of the system or files, Supports booting Pi5 from NVME Solid State Drive
* for reference only, please refer to the package content for detailed part list
Applicable M.2 drive sizes
NVMe Drive Slot Support
* Only supports the NVMe Protocol Solid State Drives.
More rich interfaces
Precise cut-out with clear label
each cut-out is completely aligned with the connector
Heat Dissipation Design
Aluminum alloy case enables large-area heat conduction and dissipation, combined with heat sink fins, better heat dissipation
Supports Rail mounting and VASE mounting
Reserved Rail-mount buckle and VASE mounting holes for more convenient installations
* for reference only, comes with rail-mount buckle and is compatible with VESA mounting.

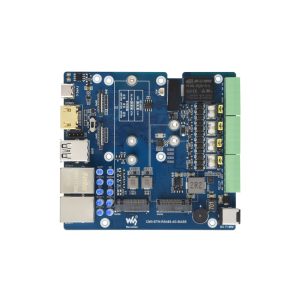

What’s On Board
- CM5 socket
suitable for all variants of Compute Module 5 - M.2 M KEY
supports 2242 / 2230 NVMe Solid State Drives or AI modules - Nano SIM card slot
- TF card slot
for connecting a TF card with pre-burnt system (Lite variant ONLY) - Dual USB 2.0 ports
standard USB 2.0 ports - BOOT button
press before powering on to enter the burning mode - PSW power button
Long press to force power off, short press to soft power off or on - M.2 B KEY
supports connecting 4G/5G communication module - Buzzer
- PH2.0 speaker header
supports connecting to 8Ω 5W speaker - Programming port
used for eMMC burning - 3.5mm Jack
supports audio input and output
- HDMI interface
supports 4K outputs - USB ports
1 × standard USB 2.0 port, 1 × USB 3.2 Gen1 Type-A port with up to 5Gbps rate - DC power screw terminal
supports DC 7V ~ 36V power supply - Indicators
- 1000M Ethernet RJ45 port
supports 10M / 100M / 1000M network connections - 2500M Ethernet RJ45 port
supports 10M / 100M / 1000M / 2500M network connections - RTC Batt header
for connecting with compatible RTC Batt to power the RTC chip - Multi-function interface
1 × CAN interface with up to 1Mbps and 2 × digital outputs + 2 × digital inputs - RS485 / RS232 interface
Options for 2 × RS485 + 2 × RS232 version or 4 × RS485 version - 120R Jumper
RS485 and CAN terminal resistor selection (No function for RS232)
Application Example
Suitable for Raspberry Pi applications in remote communication or other industrial situations
* for reference only, the display, keyboard, and mouse are NOT included, please purchase separately.
How to install
Outline dimensions
Package content:
Weight: 0.709 kg
IPCBOX-CM5-A
- IPCBOX-CM5-A metal case x1
- CM5-IPC-BASE-A-4RS485 baseboard x1
- 12V 4A power x1
- Power adapter cable 15cm x1
- Black nylon spacers x4
- Screws pack x1
- Screwdriver x1
- 6PIN 3.5mm pitch double-layer terminal block x1
- 4PIN 3.5mm pitch double-layer terminal block x1
- Rail-mount buckle x1
- Pink thermal tapes x1
Dodatne informacije
| Težina | 794 g |
|---|
Deklaracija
| Šifra: w34121 |
| Naziv: IPCBOX-CM5-A (EU) |
| Vrsta: Waveshare |
| Zemlja porekla: Kina |
| Zemlja uvoza: Kina |
| Uvoznik: MALINA 314 doo, Beograd |
| Telefon: 061-640-2013 |
