2,790 RSD (Sa PDV-om)
Mini Dual Gigabit Eth Base Board, Mini-Computer Kit za Raspberry Pi CM 5
Nema na stanju
Opis
Korisne informacije: www.waveshare.com/wiki/CM5-DUAL-ETH-MINI
Mini Dual Gigabit Ethernet Base Board / Mini-Computer Kit Designed for Raspberry Pi Compute Module 5 (NOT Included), For All Variants Of CM5
SKU: 30915
Part No.: CM5-DUAL-ETH-MINI
Brand: Waveshare
Dual Gigabit Ethernet Base Board For CM5
Mini, Practical And Neat
Suitable For Evaluating The Raspberry Pi CM5 Or Being Integrated Into End Products
CM5-DUAL-ETH-MINI the dual Gigabit Ethernet base board only
Specifications
| CM5 socket | suitable for all variants of Compute Module 5 |
|---|---|
| Networking | Dual Gigabit Ethernet RJ45 connectors |
| USB | USB 3.0 port |
| PIN HEADER | Raspberry Pi 40PIN GPIO header |
| Storage | TF card socket for Compute Module 5 Lite (without eMMC) variants |
| Fan header | 4-wire SH1.0 port, allows speed adjustment and measurement, 5V |
| Power input | 5V, Type-C interface |
| Dimensions | the base board: 55.0 × 68.0mm |
| with metal case: 61.0 × 75.0 × 27.5mm |
Connecting with Compute Module 5
standard CM5 socket and 40PIN GPIO header
suitable for Compute Module 5 Lite/eMMC series module
for reference only, CM5 is NOT included
What’s On Board
- 40PIN GPIO header
for connecting sorts of HAT - CM5 socket
suitable for all variants of Compute Module 5 - PSW button
- BOOT button
- RTC battery header
for connecting rechargeable RTC battery - FAN header
for connecting cooling fan, allows speed adjustment and measurement - RJ45 Gigabit Ethernet ports
Dual RJ45 Gigabit Ethernet ports, 10/100/1000M compatible
ETHERNET 0: CM5 original network port
ETHERNET 1: PCIe extended network port
- USB3.2 Gen1 Type-A port
for connecting sorts of USB devices - Type-C port
5V power supply, or used for eMMC programming - TF card slot
for connecting a TF card with pre-burnt image (Lite variant ONLY) - RTL8111H
Gigabit NIC chip - SYSTEM switch
EEPROM_WP: Prevent EEPROM from being overwritten
WiFi_DIS: WiFi disabled, only for CM5 versions with wireless
BT_DIS: Bluetooth disabled, only for CM5 versions with wireless - Indicators
Red light: indicating the power supply status of Raspberry Pi
Green light: indicating the working status of Raspberry Pi

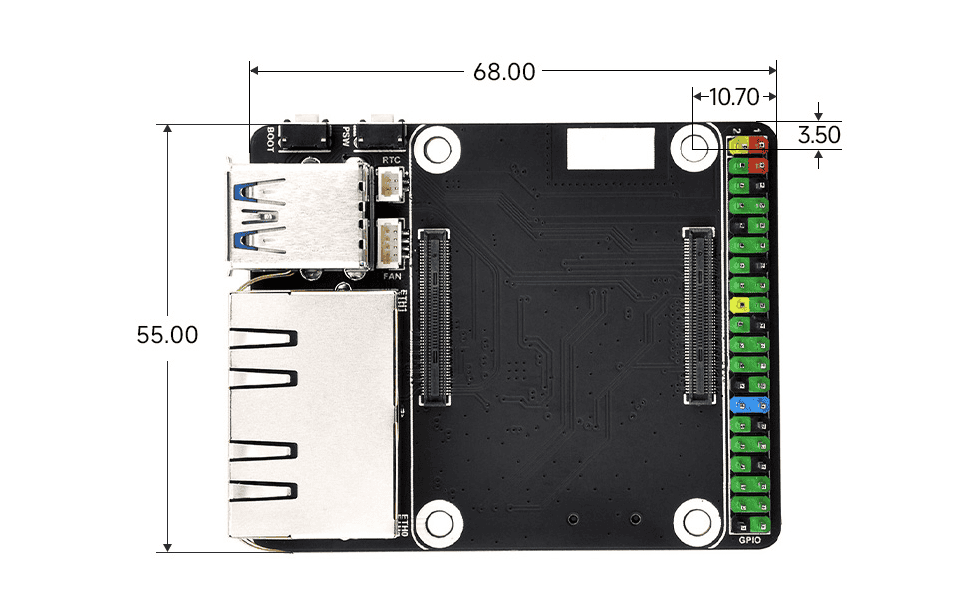

Outline dimensions
About Compute Module 5
Newly upgraded, more powerful
- Upgraded processor BCM2712, quad-core Cortex-A76 64-bit SoC, more powerful performance
- More options for RAM (2GB / 4GB / 8GB / 16GB)
- More options for eMMC Flash (0GB (Lite) / 8GB / 16GB / 32GB / 64GB)
- Faster eMMC Flash storage, up to 200 Mbps data rate
- Optional for certified radio module, supports either PCB trace antenna or external antenna, more suitable for industrial applications
- Adopts B to B connectors, most compatible with Compute Module 4
- Onboard Gigabit Ethernet PHY supporting IEEE1588, suitable for network applications
- Onboard PCIe Gen 2 x1 interface, allows connecting more useful modules
Package Content
Weight: 0.036 kg
CM5-DUAL-ETH-MINI
CM5-DUAL-ETH-MINI x1
Dodatne informacije
| Težina | 46 g |
|---|
Deklaracija
| Šifra: | w30915 |
| Naziv: | CM5-DUAL-ETH-MINI |
| Vrsta: | Waveshare |
| Zemlja porekla: | Kina |
| Zemlja uvoza: | Kina |
| Uvoznik: | MALINA 314 doo, Beograd |
| Telefon: | 061-640-2013 |
