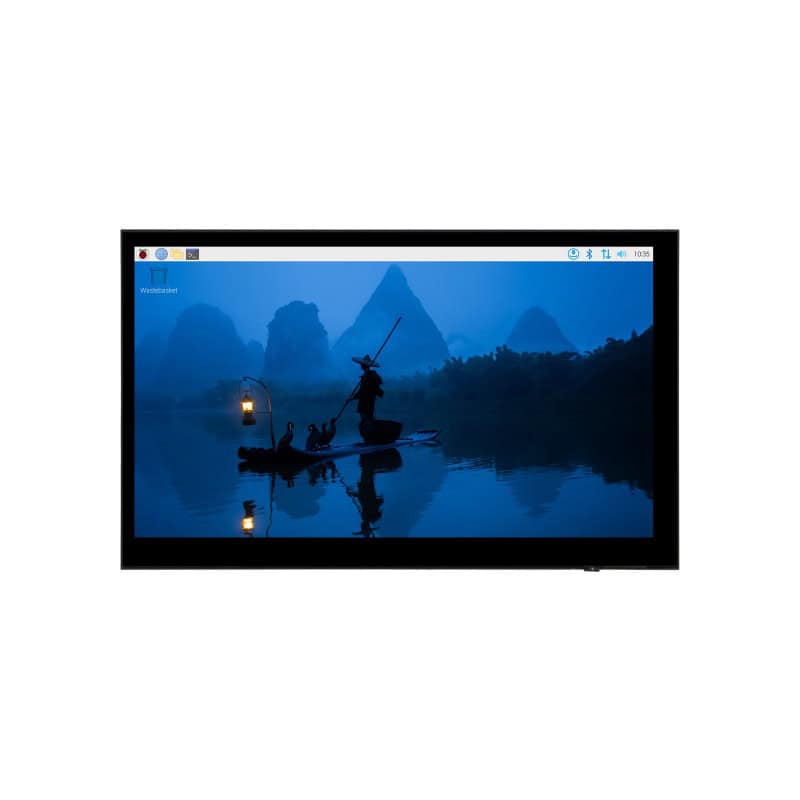

7 inča DSI Touch ekran, 720×1280, IPS, ojačano staklo, Anti-Fingerprint
7 inča DSI Touch ekran, 720×1280, IPS, ojačano staklo, Anti-Fingerprint - Slika 2
7 inča DSI Touch ekran, 720×1280, IPS, ojačano staklo, Anti-Fingerprint - Slika 3
7 inča DSI Touch ekran, 720×1280, IPS, ojačano staklo, Anti-Fingerprint - Slika 4

6,490 RSD (Sa PDV-om)

7 inča DSI Touch ekran, 720×1280, IPS, ojačano staklo, Anti-Fingerprint

3 na zalihama

Šifra proizvoda: w30323 Kategorija: Oznaka: Težina proizvoda: 326 g

Opis

Kućište za ovaj displej na linku

7inch DSI Capacitive Touch Display, 720×1280 Pixels, IPS Panel, Optical Bonding Toughened Glass Panel, 10-Point Touch, Anti-Fingerprint Process, With Case(Optional)

SKU:30323
Part No.:7-DSI-TOUCH-A
Brand:Waveshare

Korisne informacije: http://www.waveshare.com/wiki/7-DSI-TOUCH-A

7″ DSI Capacitive Touch Display

7inch DSI capacitive touch display, front and back view

The display orientation is portrait by default, 720×1280 resolution (H×V). Change the software config for landscape display.

7-DSI-TOUCH-A Standard version

Device & System Support

Raspberry Pi
Supports Raspberry Pi OS, 10-point touch
ESP32-P4
Supports LVGL GUI programs, up to 10-point touch
RK3506
Supports Buildroot / Ubuntu, etc. 10-point touch
RK3576
Supports Buildroot / Debian / Ubuntu / Android, etc. 10-point touch

* (the case supports Raspberry Pi 5 only, due to connector layout)

Connection examples

Working with Raspberry Pi 5

7inch DSI capacitive touch display, working with Raspberry Pi 5

Please connect the FPC cable as shown above, and power the LCD through the GPIO 5V pin

Working with Raspberry Pi 4B

7inch DSI capacitive touch display, working with Raspberry Pi 4B

Please connect the DSI cable as shown above, and power the LCD through the GPIO 5V pin

Working with ESP32-P4-NANO

7inch DSI capacitive touch display, connecting to ESP32-P4-NANO

Working with Luckfox Lyra

7inch DSI capacitive touch display, connecting to Luckfox Lyra

Working with Luckfox Omni3576

7inch DSI capacitive touch display, connecting to Luckfox Omni3576

* for reference only, the above controller boards or hosts are NOT included

IPS Display Panel

Excellent Display Performance With 170° Wide Viewing Angle

7inch DSI capacitive touch display, adopts IPS display panel

10-Point Capacitive Touch

7inch DSI capacitive touch display, supports 10-point capacitive touch

  1. up to 10-point touch, depending on the operating system
  2. up to 6H hardness toughened glass panel
  3. Optical bonding, provides clear image, dustproof
  4. Adopts anti-fingerprint panel coating, easy to clean
Supports backlight adjustment via software

7inch DSI capacitive touch display, backlight adjustment demo

Thinner and more space-saving

Integrates the driver circuit into an FPC cable, the total thickness of the LCD is only 9.3mm

7inch DSI capacitive touch display, more space-saving

Interface definition

7inch DSI capacitive touch display, interface definition

Outline dimensions

Standard version

7inch DSI capacitive touch display, outline dimensions

Package Content

7-DSI-TOUCH-A

  1. 7-DSI-TOUCH-A x1
  2. MIPI-DSI-Cable-12cm x1
  3. MX 1.25 2PIN to 2.54 3PIN cable x1
  4. FFC 22PIN cable ~200mm (opposite sides) x2
  5. MX1.25 2PIN to MX1.25 4PIN cable ~150mm x1
  6. Standoffs x1
17-DSI-TOUCH-A
2
3
4
5
6

Dodatne informacije

Težina 326 g

Deklaracija

Šifra: w30323
Naziv: 7 inča DSI Touch ekran
Vrsta: Waveshare
Zemlja porekla: Kina
Zemlja uvoza: Kina
Uvoznik: MALINA 314 doo, Beograd
Telefon: 061-640-2013
