Ekran 7 inča za kućištem, RPi4 / RPi5, 720×1280, Industrijski HMI, Dual HDMI
Ekran 7 inča za kućištem, RPi4 / RPi5, 720×1280, Industrijski HMI, Dual HDMI - Slika 2
Ekran 7 inča za kućištem, RPi4 / RPi5, 720×1280, Industrijski HMI, Dual HDMI - Slika 3
Ekran 7 inča za kućištem, RPi4 / RPi5, 720×1280, Industrijski HMI, Dual HDMI - Slika 4
Ekran 7 inča za kućištem, RPi4 / RPi5, 720×1280, Industrijski HMI, Dual HDMI - Slika 5
Ekran 7 inča za kućištem, RPi4 / RPi5, 720×1280, Industrijski HMI, Dual HDMI - Slika 6
Ekran 7 inča za kućištem, RPi4 / RPi5, 720×1280, Industrijski HMI, Dual HDMI - Slika 7

8,890 RSD (Sa PDV-om)

Ekran 7 inča za kućištem, RPi4 / RPi5, 720×1280, Industrijski HMI, Dual HDMI

Nema na stanju

Šifra proizvoda: w31549 Kategorija: Oznaka: Težina proizvoda: 814 g

Opis

SKU: 31549
Part No.: RPI-HMI-7A-ACCE-B
Brand: Waveshare

Korisne informacije: www.waveshare.com/wiki/RPI-HMI-7A

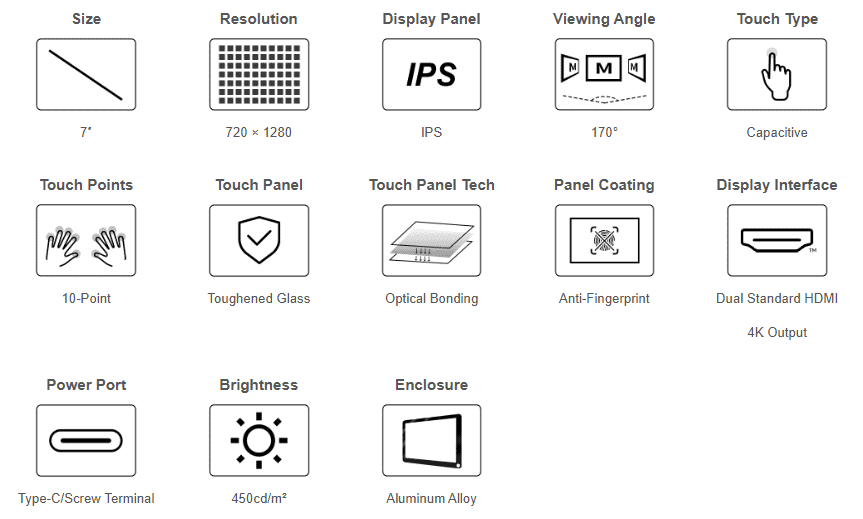

7inch 720 × 1280 Industrial HMI All-in-one Touch Display For Raspberry Pi 4 / 5, Supports Dual 4K HDMI Output, 10-point Touch, Optical Bonding, Aluminum Alloy Case For Efficient Heat Dissipation

7inch Industrial HMI All-in-one touch Display
for Raspberry pi

High Resolution | 10-point Touch | Aluminum alloy case

PI5-HMI-7A front view

Version Options

PI5-HMI-7A Accessories Pack BRPI-HMI-7A-ACCE-B
Touch Display + Accessories pack only

Toughened Glass Panel

Sensitive touch control with High Resolution display, durable design

PI5-HMI-7A Toughened Glass Panel

Built for Raspberry Pi

PI5-HMI-7A Raspberry Pi 5Raspberry Pi 5

PI5-HMI-7A Raspberry Pi 4Raspberry Pi 4

* the Raspberry Pi is not included

10-Point Capacitive Touch

PI5-HMI-7A 10-Point Capacitive Touch

  1. up to 10-point touch, depending on the operating system
  2. up to 6H hardness toughened glass panel
  3. Optical bonding, display well and dustproof
  4. Adopts anti-fingerprint panel coating, easy to clean

Adjustable brightness via software

PI5-HMI-7A Adjustable brightness via software

Excellent heat dissipation

Full Metal Enclosure with efficient heat dissipation, Pure passive cooling, no fan noise worries

PI5-HMI-7A Excellent heat dissipation

Two power supply methods

Supports power supply via screw terminal or USB Type-C Port

PI5-HMI-7A Two power supply methods

VESA Mounting Support

Easily adaptable to various monitor arms, enjoy a flexible installation experience

PI5-HMI-7A VESA Mounting Support

* Note: the monitor arm is NOT included, please refer to the package content for the detailed part list.

Interface Introduction

PI5-HMI-7A Interface Introduction

  1. 5V Type-C power port
  2. Standard HDMI Interface x 2
  3. USB2.0 port x 2
  4. USB3.0 port x 2
  5. Gigabit Ethernet connector
  1. TF card slot
  2. Power button
  3. Power indicator
  4. 5V Power supply screw terminal (3.81mm pitch)
  5. Debugging serial port

Outline Dimensions

PI5-HMI-7A Outline Dimensions

Package content:

Weight: 0.079 kg

RPI-HMI-7A-ACCE-B

  1. 7inch touch display × 1
  2. Mounting buckle (4PCS) × 1
  3. Screws pack × 1
  4. 5W thermal pad × 1
  5. Pi5-HMI Accessories Pack:
    • PI5 side panel × 1
    • Aluminum alloy heatsink × 1
    • Silicon button × 1
  6. Pi4-HMI Accessories Pack:
    • PI4 side panel × 1
    • Copper heatsink × 1
  7. Pi5-Display-Cable ~200mm × 1
  8. 22PIN FFC Cable (2PCS) ~200mm × 1

RPI-HMI-7A-ACCE-B pack

Dodatne informacije

Težina 814 g

Deklaracija

Šifra: w31549
Naziv: RPI-HMI-7A-ACCE-B LCD
Vrsta: Waveshare
Zemlja porekla: Kina
Zemlja uvoza: Kina
Uvoznik: MALINA 314 doo, Beograd
Telefon: 061-640-2013
