5,290 RSD (Sa PDV-om)
5.83 inčainch e-Paper displej (G), e-ink, 648 x 480, Red/Yellow/Black/White, SPI konekcija
1 na zalihama
Opis
SKU: 32788
Part No.: 5.83inch e-Paper HAT (G)
Brand: Waveshare
Korisne informacije: www.waveshare.com/wiki/5.83inch_e-Paper_HAT_(G)
5.83″ e-Paper (G)
low power consumption, wide viewing angle, paper-like displaying without electricity
Ideal for price tags, shelf labels, industrial instruments…

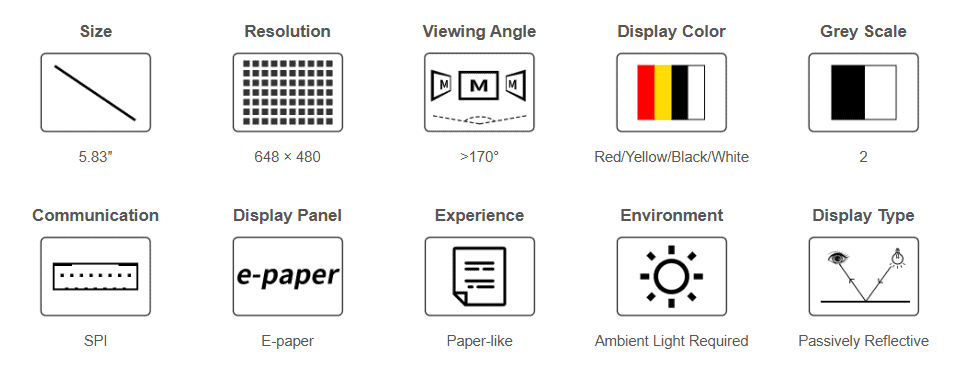

Features at a glance
- No backlight, keeps displaying last content for a long time even when power down
- Ultra low power consumption, basically power is only required for refreshing
- Comes with online development resources and manual (e-Paper Driver HAT circuit diagram, examples for Raspberry Pi / Jetson Nano / ESP32 / Arduino / STM32)
- Optional for e-Paper Driver HAT:
- Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards and Jetson Nano
- Adapting SPI interface for connecting with controller boards like Raspberry Pi / Jetson Nano / ESP32 / Arduino / STM32, etc.
- Onboard voltage translator, compatible with 3.3V / 5V MCUs
Specifications
| operating voltage | Raw display: 3.3V | display color | Red/Yellow/Black/White |
|---|---|---|---|
| with driver board: 3.3V/5V | |||
| interface | 3-wire SPI, 4-wire SPI | grey scale | 2 |
| outline dimensions | Raw display: 125.40 × 99.50 × 1.20 (mm) | Fast Refresh Time | 12s |
| driver board: 30.5 × 65 (mm) | full refresh time | 20s | |
| display size | 118.78 × 88.22 (mm) | refresh power | <100mW |
| DOT PITCH | 0.1833 × 0.1833 (mm) | standby current | <0.01uA (almost none) |
| RESOLUTION | 648 × 480 pixels | viewing angle | >170° |
Advantages of EINK
E-paper display utilizes microcapsule electrophoretic technology for displaying, the principle is: charged particles suspended in clear fluid will move to sides of microcapsule when electric field is applied, making the microcapsule become visible by reflecting ambient light, just as traditional printed paper.
E-paper display will clearly display images/texts under lamplight or natural light, requires no backlight, and features nearly up to 180° viewing angle. It is usually used as e-reader due to its paper-like effect.
Standard Raspberry Pi 40PIN GPIO header
compatible with Raspberry Pi series boards and Jetson Nano
Optional for e-Paper Driver HAT
Onboard SPI Control Interface, For Use With Controller Boards Like Raspberry Pi / Jetson Nano / ESP32 / Arduino / STM32
| VCC | 3.3V/5V |
|---|---|
| GND | Ground |
| DIN | SPI MOSI pin |
| SCLK | SPI SCLK pin |
| CS | SPI chip selection, low active |
| DC | Data / Command selection (high for data, low for command) |
| RST | External reset, low active |
| BUSY | Busy status output |
| PWR | Power control pin |
Onboard Voltage Translator
Compatible With 3.3V / 5V MCUs
Application examples
Suitable for price Tags, asset/equipment Tags, shelf labels, conference name tags…
Outline dimensions
Package content:
Weight: 0.051 kg
5.83inch e-Paper HAT (G)
- 5.83inch e-Paper HAT (G) x1
- Screws pack x1
- MX1.25 9PIN cable ~20cm x1
Dodatne informacije
| Težina | 134 g |
|---|
Deklaracija
| Šifra: w32788 |
| Naziv: 5.83inch e-Paper HAT (G) |
| Vrsta: Waveshare |
| Zemlja porekla: Kina |
| Zemlja uvoza: Kina |
| Uvoznik: MALINA 314 doo, Beograd |
| Telefon: 061-640-2013 |
