Opis

SKU: 19537
Part Number: LCD1602 RGB Module
Brand: Waveshare

Korisne informacije: http://www.waveshare.com/wiki/LCD1602_RGB_Module

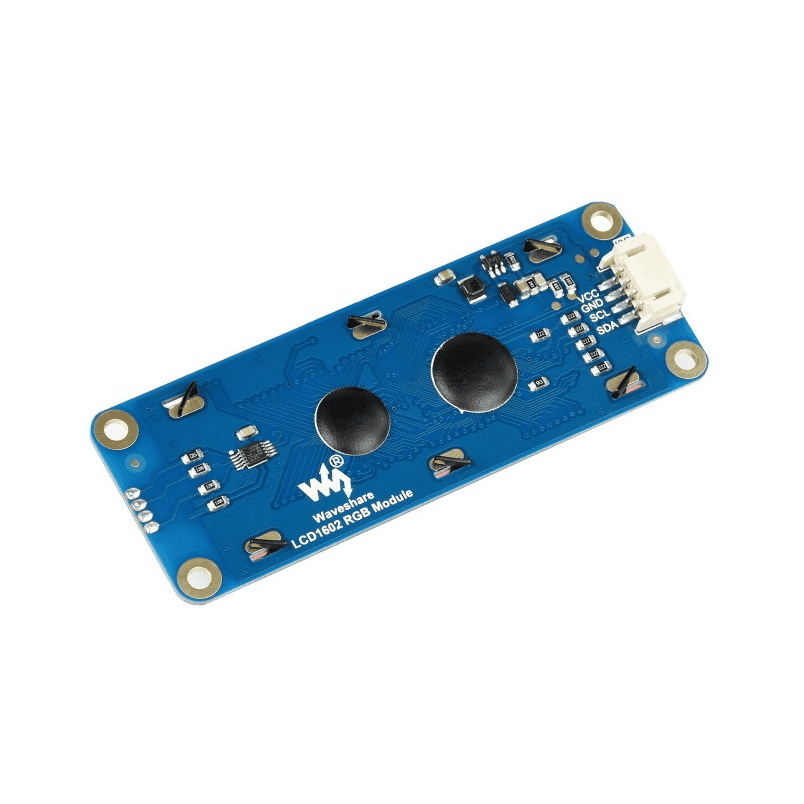

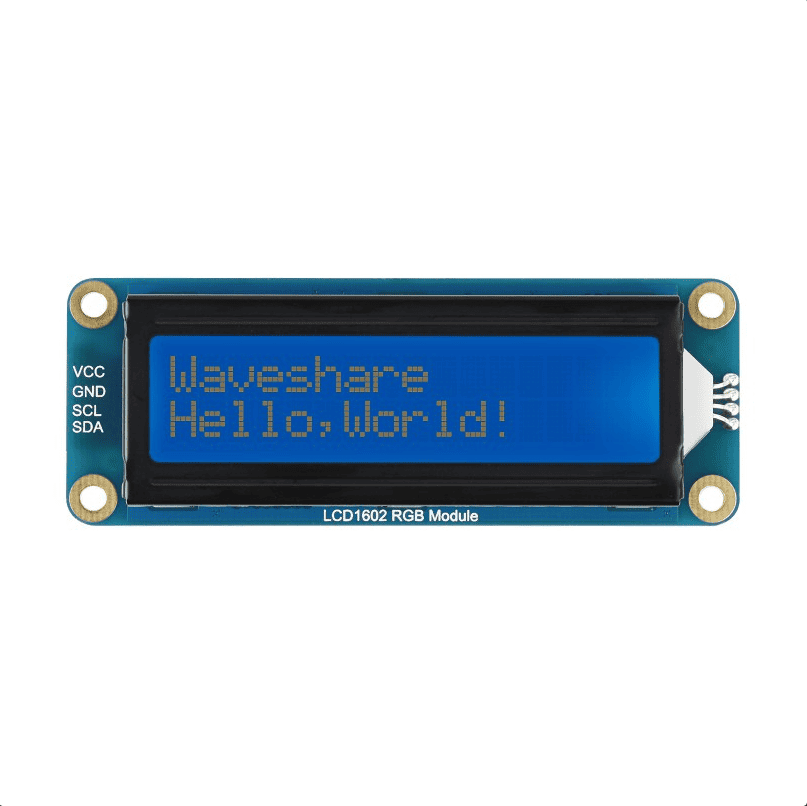

LCD1602 RGB Module

LCD1602 RGB Module, 16×2 Characters LCD, RGB Backlight, 3.3V/5V, I2C Bus

Supports Raspberry Pi, Raspberry Pi Pico, Jetson Nano and Arduino…



Characters	Interface	Display Panel	RGB Backlight	LCD Controller
16 x 2	I2C	Char LCD	16M Colors	AiP31068
RGB Driver
PCA9633

---

█ Features At A Glance

• Incorporates character LCD panel LCD1602
• Adjustable RGB backlight color, up to 16M (256³) backlight colors in theory
• I2C control interface, only two signal pins are required, saving the IO resource
• Compatible with 3.3V/5V operating voltage
• Comes with development resources and manual (Raspberry Pi/Jetson Nano/Arduino examples)

---

█ Specifications

OPERATING VOLTAGE	3.3 ~ 5V	LCD CONTROLLER	AiP31068
COMMUNICATION INTERFACE	I2C	RGB DRIVER	PCA9633
DISPLAY PANEL	character LCD	DISPLAY SIZE	64.5 × 16.0mm
CHARACTERS	16 × 2	DIMENSIONS	87.0 × 32.0 × 13.0mm
BACKLIGHT COLORS	16M	OPERATING VOLTAGE	-20 ~ +70℃

---

█ Adjustable RGB Backlight Color

Up To 16M Colors Available

---

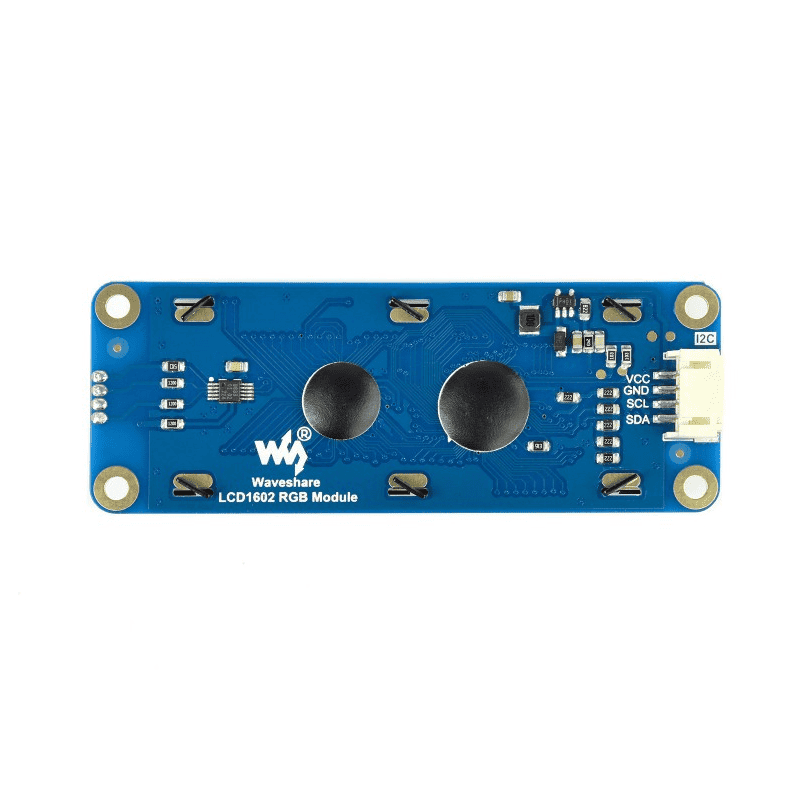

█ I2C Control Interface

For Connecting With Host Boards Like Raspberry Pi / Arduino…

VCC	3.3V ~ 5V power input
GND	GND
SCL	I2C clock pin
SDA	I2C data pin

---

█ Hardware Connection

Connecting With Raspberry Pi Pico

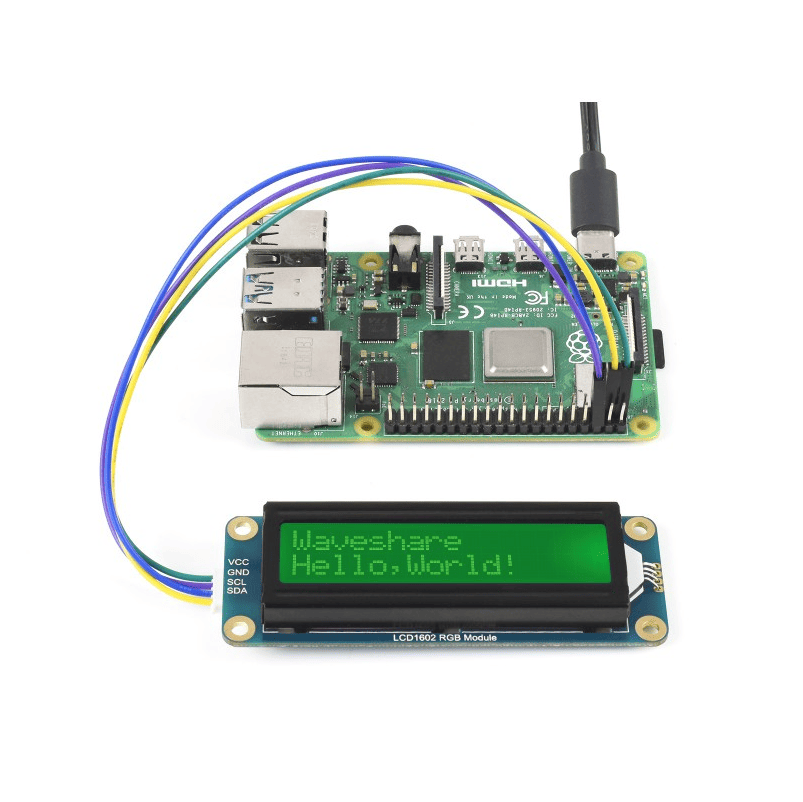

Connecting With Raspberry Pi

Connecting With Arduino Board

Connecting With Jetson Nano Developer Kit

---

█ Demonstration

---

█ Dimensions

---

█ Package Content

1.

2.

1. LCD1602 RGB Module x1
2. PH2.0 4PIN wire x1

Weight: 0.038 kg
