RGB full-color LED matrix panel, 4mm Pitch, 80×40 piksela, podesiva osvetljenost, 320×160 mm
RGB full-color LED matrix panel, 4mm Pitch, 80×40 piksela, podesiva osvetljenost, 320×160 mm - Slika 2
RGB full-color LED matrix panel, 4mm Pitch, 80×40 piksela, podesiva osvetljenost, 320×160 mm - Slika 3
RGB full-color LED matrix panel, 4mm Pitch, 80×40 piksela, podesiva osvetljenost, 320×160 mm - Slika 4
RGB full-color LED matrix panel, 4mm Pitch, 80×40 piksela, podesiva osvetljenost, 320×160 mm - Slika 5

3,490 RSD (Sa PDV-om)

RGB full-color LED matrix panel, 4mm Pitch, 80×40 piksela, podesiva osvetljenost, 320×160 mm

3 na zalihama

Šifra proizvoda: w34431 Kategorije: , Oznaka: Težina proizvoda: 545 g

Opis

SKU: 34431
Part No.: RGB-Matrix-P4-80×40
Brand: Waveshare

Korisne informacije: docs.waveshare.com/RGB-Matrix-Px-80×40

RGB full-color LED matrix panel, 4mm Pitch, 80×40 pixels, adjustable brightness

80 × 40 full-color LED matrix panel

3200 individual RGB LEDs, 4mm pitch

supports ESP32 / Raspberry Pi / Arduino / STM32

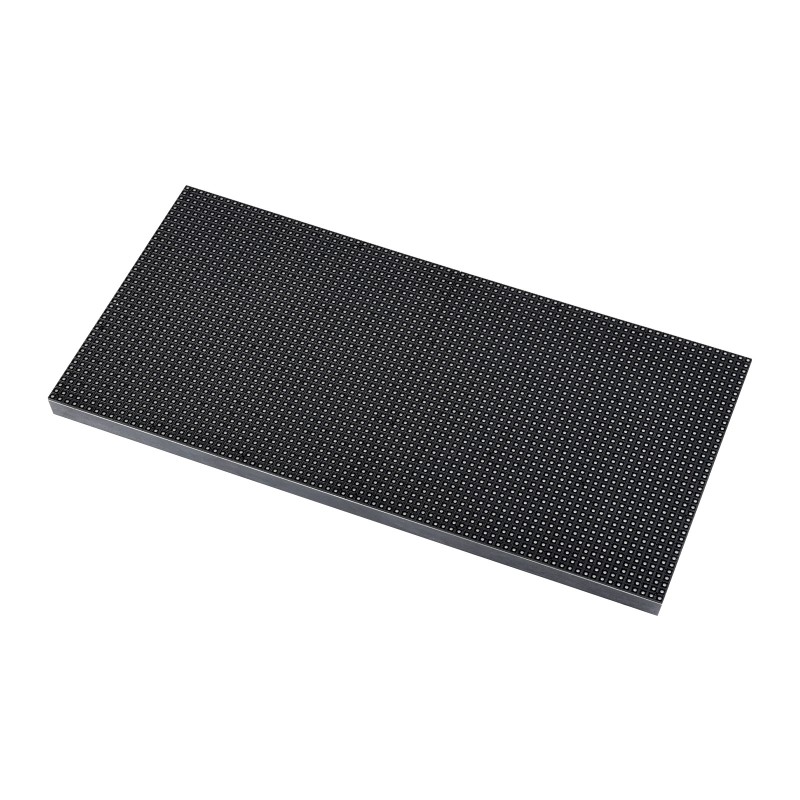

RGB full-color LED matrix panel, front view and features

* this product is only a raw panel and requires a host controller, such as ESP32, Raspberry Pi, Arduino or STM32 for display output.

Features at a glance

The product is an 80 × 40 resolution full-color RGB LED dot matrix module, integrating 3200 LEDs and equipped with dual HUB75 headers, supporting cascade expansion and rapid integration.

  • 3200 individual RGB LEDs, full-color display, adjustable brightness
  • 80 × 40 pixels, 4mm pitch, allows displaying text, colorful image, or animation
  • 320 × 160 (mm) dimensions, moderate size, suitable for DIY desktop display or wall mount display
  • Onboard dual HUB75 headers, one for controller data input, one for output, chain support
  • Provides open source development resources (examples for ESP32 / Raspberry Pi / Arduino / STM32)

Specifications

Dimensions 320 × 160 (mm)
Pixels 80 × 40 = 3200 DOTS
Pitch 4mm
Pixel form 1R1G1B
Viewing angle ≥140°
Control type synchronization
Driving 1/20 scan
Header HUB75
Power supply 5V / 4A (VH4 header input)
Power ≤20W

Headers definition

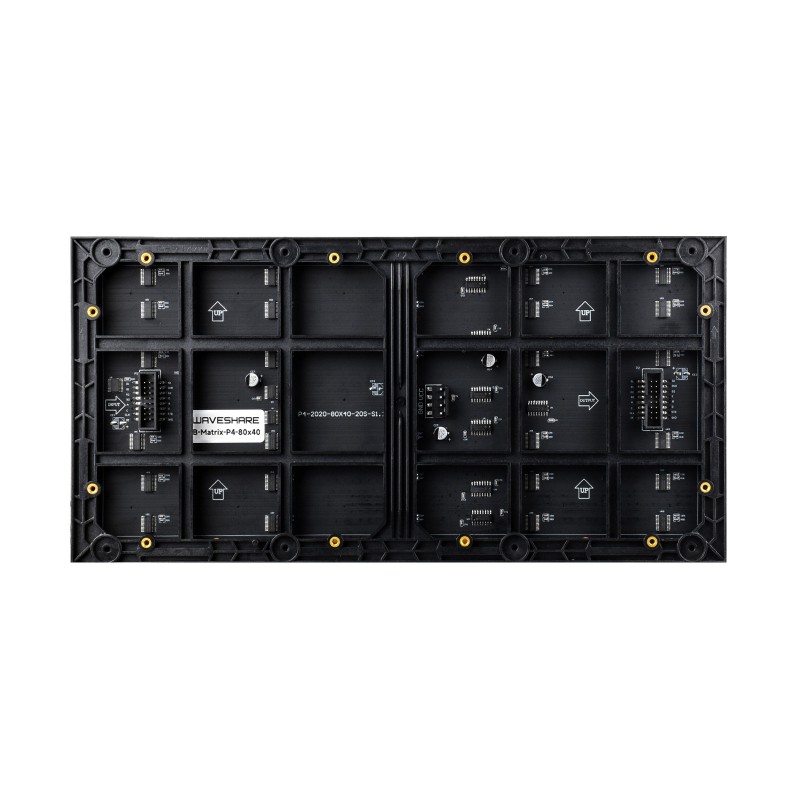

Back view pinout definition of 80x40 RGB LED matrix panel

* this back view is for reference only, PCB silkscreen and layout may have small differences from batch to batch, but the software is compatible.

Pin Description Pin Description
VCC 5V power input GND Ground
R1 R higher bit data R2 R lower bit data
G1 G higher bit data G2 G lower bit data
B1 B higher bit data B2 B lower bit data
A A line selection B B line selection
C C line selection D D line selection
E E line selection CLK clock input
LAT/STB latch pin OE output enable

Chainable design

multi LED matrix panel can be chained together to build a larger panel
via HUB75 input/output header

80 × 40 full-color LED matrix panel, chainable design

Note: Each RGB LED matrix panel requires a standalone 5V / 4A or above power supply, when they’re chained to display.

Usage scenarios

DIY maker desktop or wall mount display, signboard, environment monitor…

DIY maker desktop
wall mount display
signboard
environment monitor

Product Show

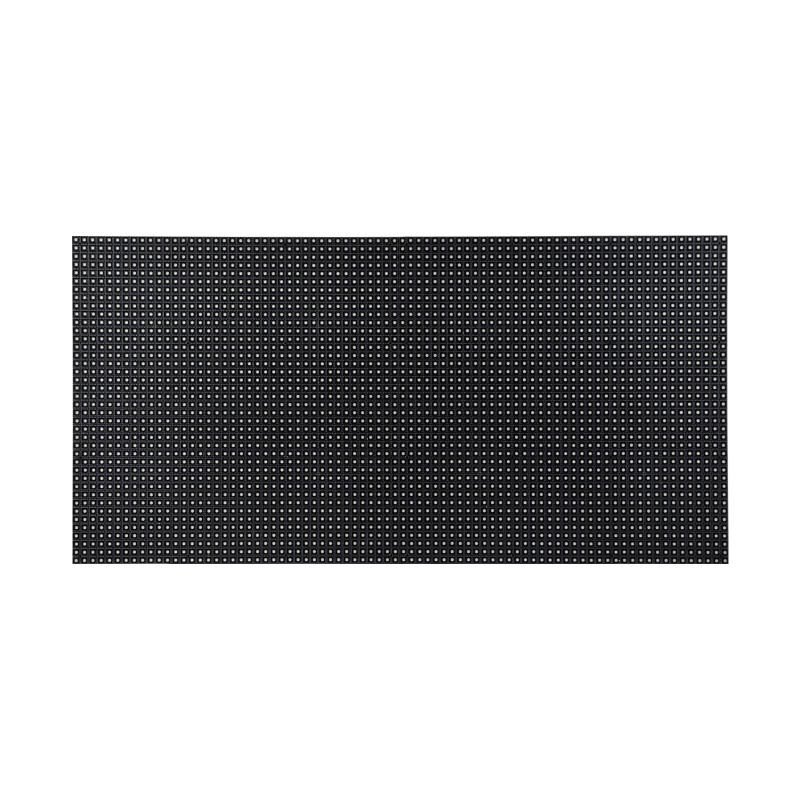

80 × 40 full-color LED matrix panel, product show

Dimensions

80 × 40 full-color LED matrix panel, Dimensions

Package content:

Weight: 0.36 kg

It is recommended to used with a 5V 4A power supply
  1. RGB-Matrix-P4-80×40 LED matrix x1
  2. VH4 2P cable 500mm x1
  3. 16PIN 2.54mm pitch flat cable 200mm x1
  4. 2 × 8PIN 2.54mm pitch cable 300mm x1
  5. Power supply terminal adapter x1
  6. Screws pack x1

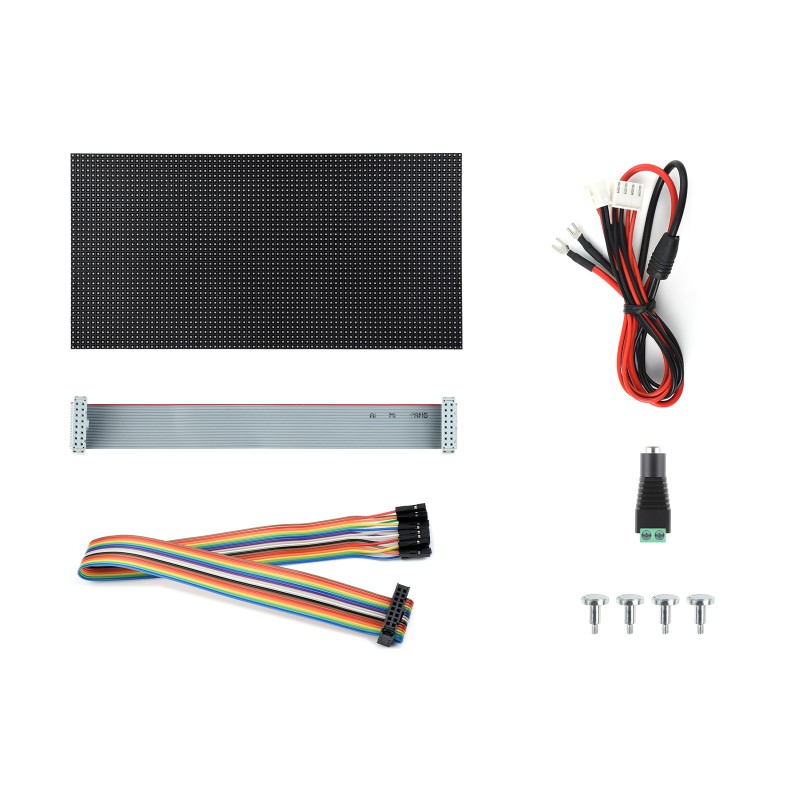

Package content list of 80x40 P4 RGB LED matrix panel

Dodatne informacije

Težina 545 g

Deklaracija

Šifra: w34431
Naziv: RGB-Matrix-P4-80×40 Display
Vrsta: Waveshare
Zemlja porekla: Kina
Zemlja uvoza: Kina
Uvoznik: MALINA 314 doo, Beograd
Telefon: 061-640-2013

Recenzije

Još nema komentara.

Samo prijavljeni korisnici koji su kupili ovaj proizvod mogu ostaviti komentar.
