3,690 RSD (Sa PDV-om)
Raspberry Pi Pico 2 W komplet/kit osnovni
Nema na stanju
Opis
SKU: 29448
Part No.: Raspberry-Pi-Pico-2-W-Basic-Kit
Korisne informacije: www.waveshare.com/wiki/Raspberry_Pi_Pico_2_W
The next big tiny thing
Built Using RP2350 Microcontroller Chip Designed By Raspberry Pi
Raspberry Pi Pico 2 W is a low-cost, high-performance microcontroller board with flexible digital interfaces. Upgraded hardware from Pico 2 with wireless communication, onboard antenna, features 2.4GHz 802.11n WIFI and Bluetooth 5.2.
Key features include:
- RP2350 microcontroller chip designed by Raspberry Pi in the United Kingdom
- Adopts unique dual-core and dual-architecture design: dual-core Arm Cortex-M33 processor and dual-core Hazard3 RISC-V processor, flexible clock running up to 150 MHz
- Onboard Infineon CYW43439 wireless chip, supports WIFI 4 wireless and Bluetooth 5.2
- 520KB of SRAM, and 4MB of on-board Flash memory
- Castellated module allows soldering direct to carrier boards
- USB 1.1 with device and host support
- Low-power sleep and dormant modes
- Drag-and-drop programming using mass storage over USB
- 26 × multi-function GPIO pins
- 2 × SPI, 2 × I2C, 2 × UART, 3 × 12-bit ADC, 16 × controllable PWM channels
- Temperature sensor
- 12 × Programmable I/O (PIO) state machines for custom peripheral support
| Model | Pico 2 W | Pico 2 | Pico W | Pico |
|---|---|---|---|---|
| processor | Dual-core ARM Cortex-M33 or dual-core Hazard3 RISC-V @150MHz |
Dual-core ARM Cortex-M0+ @133MHz |
||
| SRAM | 520KB | 264KB | ||
| Flash | 4MB | 2MB | ||
| WIFI | 2.4GHz 802.11n WIFI 4 | – | 2.4GHz 802.11n WIFI 4 | – |
| Bluetooth | Bluetooth 5.2 | – | Bluetooth 5.2 | – |
| Security | Signed boot support, OTP storage for boot decryption key, and hardware SHA-256 accelerator, etc. | – | ||
| Peripherals | 2 × UART 2 × SPI 2 × I2C 3 × ADC 1 × USB 1.1 and PHY 16 × PWM |
|||
| 12 × PIO state machines | 8 × PIO state machines | |||
| 1 × HSTX | – | |||
| GPIO pins | 26 | |||
Pico 2 W Basic Kit
On the basis of the starter kit, this kit includes LCD1602 RGB Module, PIR motion sensor, RGB LED, alarm, single-joint potentiometer, and 5mm LED, etc. With the official tutorial, you can quickly get started with MicroPython programming.
Comprehensive SDK, dev resources, tutorials to help you easily get started
The unique dual-core, dual-architecture capability of RP2350 allows users to choose between a pair of industry-standard Arm Cortex-M33 cores, and a pair of open-hardware Hazard3 cores, giving developers a chance to experiment with the RISC-V architecture in a stable, well-supported environment
Onboard Infineon CYW43439 wireless chip, supports WIFI 4 wireless and Bluetooth 5.2
configurable pin function, allows flexible development and integration
Package content:
Raspberry-Pi-Pico-2-W-Basic-Kit

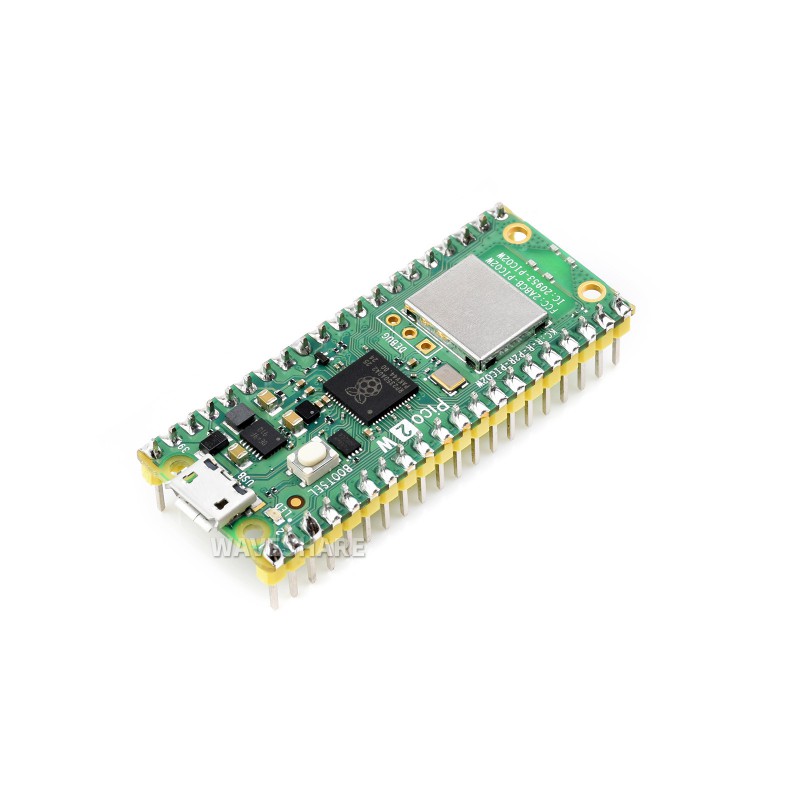

- Raspberry Pi Pico 2 W with pre-soldered header (mono) x1

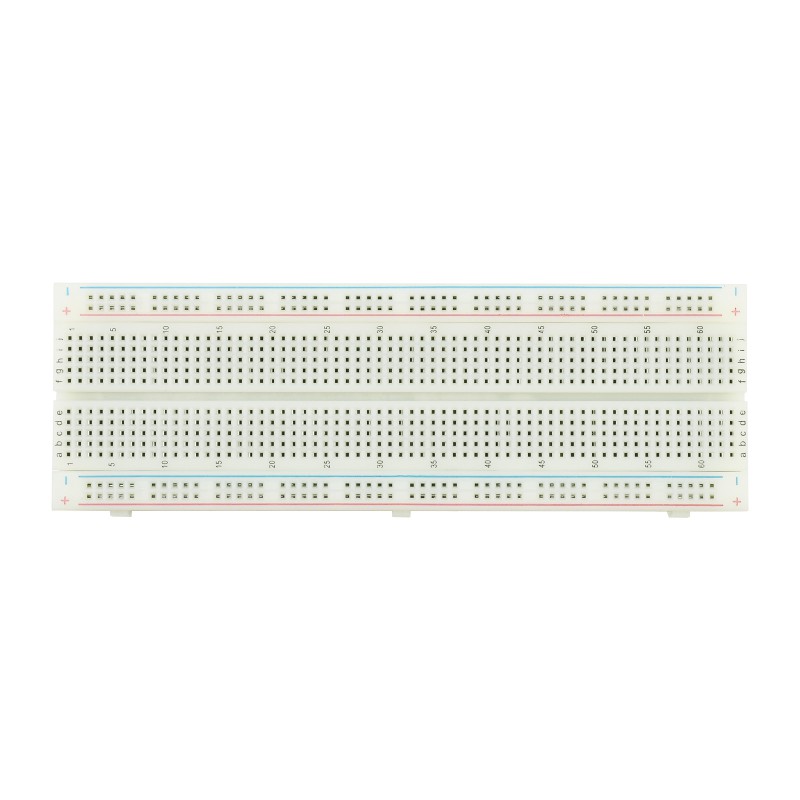

- Experimental board + jumper wires x1
- USB-A to micro USB cable ~1.2m x1
- PIR sensor 2PCS x1
- Single-joint potentiometer x1
- 8-Bit WS2812 RGB LED x1
- Round-shape button 3PCS x1
- Alarm x1
- 330R resistor 10PCS x1
- 5mm LED 6PCS x1

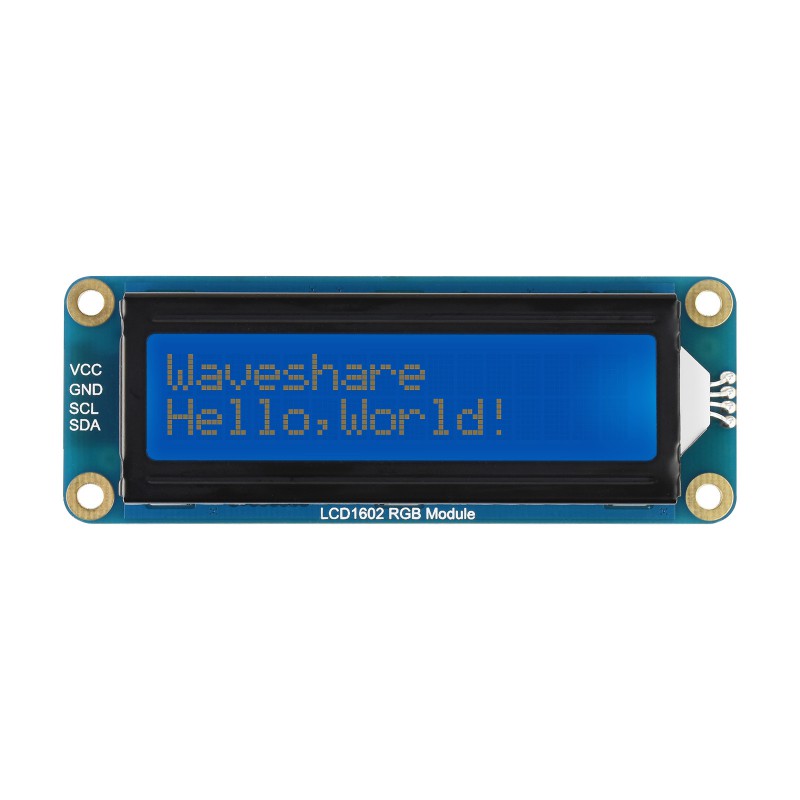

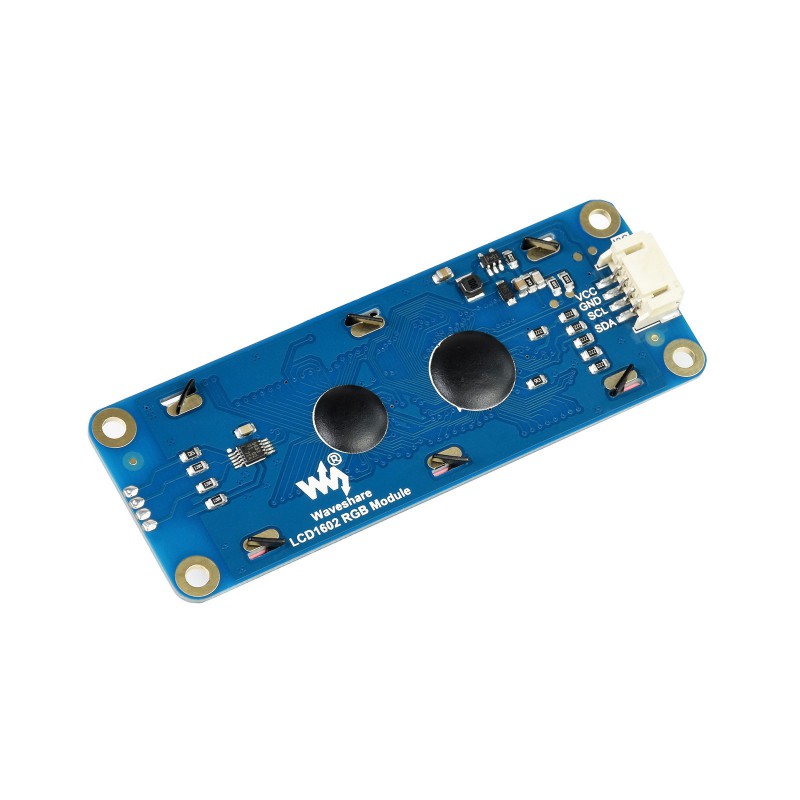

- LCD1602 RGB Module x1
- Jumper wire 2.54mm pitch male-male 10PIN ~200mm x1
- Jumper wire 2.54mm pitch female-female 10PIN ~200mm x1
- Jumper wire 2.54mm pitch male-female 10PIN ~200mm x1
- Plastic storage box x1
- Acrylic protective case (top and bottom) x1
Dodatne informacije
| Težina | 499 g |
|---|
Deklaracija
| Šifra: w29448 |
| Naziv: Raspberry-Pi-Pico-2-W-Basic-Kit |
| Vrsta: Waveshare |
| Zemlja porekla: Kina |
| Zemlja uvoza: Kina |
| Uvoznik: MALINA 314 doo, Beograd |
| Telefon: 061-640-2013 |
