5,690 RSD (Sa PDV-om)
PCIe na 4-Ch 2.5G ETH (B) za Raspberry Pi 5, Raspberry Pi OS, Driver-Free, Plug & Play
2 na zalihama
Opis
SKU: 33364
Part No.: PCIE TO 4-CH 2.5G ETH Board (B)
Brand: Waveshare
Korisne informacije: www.waveshare.com/wiki/PCIE_TO_4-CH_2.5G_ETH_Board_(B)
PCIe TO 4-Ch 2.5G ETH Board (B) For Raspberry Pi 5, Supports Raspberry Pi OS, Driver-Free, Plug And Play
PCIe TO 4-ch ETH Port Adapter Board
Designed for Raspberry Pi 5
Supports Raspberry Pi OS, Driver-free, Plug and Play

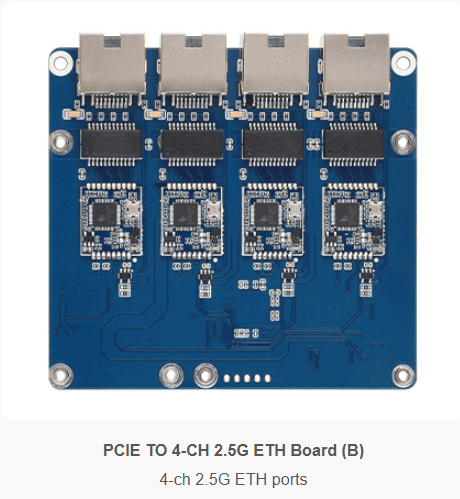

Product showcase
Specifications
| Version | 2.5G ETH | |
|---|---|---|
| CONTROLLER chip | RTL8156 | |
| Expansion chip | VL805 | |
| Ethernet Port | RJ45 Ethernet ports | |
| Power supply | 5V | |
| Network standard | 10/100/1000/2500Mbps | |
| Indicator status | The green indicator keeps lighting, the yellow indicator keeps blinking | |
Connecting to PI5 via 16PIN Cable
Based on 16PIN PCIe Interface of Raspberry Pi 5
* for reference only, please refer to the Package Content for detailed part list
Power Supply Method
power supply via PCIe cable by default
* for reference only, please refer to the Package Content for detailed part list
Assembly Diagram
* for reference only, the Pi5 Connector Adapter and Raspberry Pi 5 are NOT included in the package, please purchase separately.
Outline dimensions
Package content:
Weight: 0.065 kg
PCIE TO 4-CH 2.5G ETH Board (B)
- PCIE TO 4-CH 2.5G ETH Board (B) x1
- 16P-Cable-40mm x1
- Screws pack x1
1
2
3
Dodatne informacije
| Težina | 80 g |
|---|
Deklaracija
| Šifra: w33364 |
| Naziv: PCIE TO 4-CH 2.5G ETH Board |
| Vrsta: Waveshare |
| Zemlja porekla: Kina |
| Zemlja uvoza: Kina |
| Uvoznik: MALINA 314 doo, Beograd |
| Telefon: 061-640-2013 |
