Luckfox Pico Pi Linux razvojna ploča, Core1106, 8GB eMMC, Built-in ISP3.2

2 na zalihama

Šifra proizvoda: w30619 Kategorija: Oznaka: Težina proizvoda: 91 g

Opis

Luckfox Pico Pi Linux Micro Development Board, Based On Luckfox Core1106, 8GB eMMC, Supports Intelligent Encoding, Built-in Self-developed Third-generation ISP3.2

SKU: 30619
Part No.: Luckfox Pico Pi A W
Brand: LUCKFOX

Korisne informacije: https://wiki.luckfox.com/Luckfox-Pico-Pi/

Luckfox Pico Pi Linux Micro Development Board, Based On Luckfox Core1106, 8GB eMMC, Supports Intelligent Encoding, Built-in Self-developed Third-generation ISP3.2, Up To 5MP Image Processing, Wireless

Luckfox Pico Pi

The Luckfox Pico Pi is a cost-effective Linux micro development board, based on the Luckfox Core1106 chip to provide a simple and efficient development platform for developers. Supports a variety of interfaces including MIPI CSI, GPIO, UART, SPI, I2C, USB, and an M.2 slot for 4G module, etc., which is ideal for a wide range of embedded applications.

Luckfox Pico Pi series, front view Luckfox Pico Pi series, features

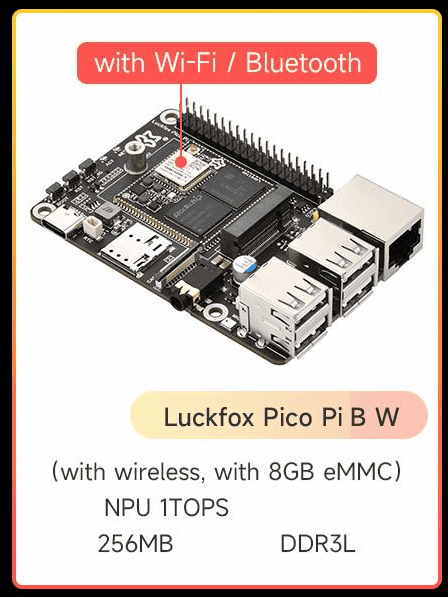

Development Board Version

Wi-Fi 6 and Bluetooth module

Onboard 2.4GHz Wi-Fi 6 and Bluetooth 5.2/BLE Bluetooth Module, Providing Stable Connection And Efficient Transmission

Luckfox Pico Pi series, onboard Wi-Fi 6 and Bluetooth module

Reserved PoE Module Header

More Flexible for Power Supply

Luckfox Pico Pi series, onboard reserved PoE module header

* the PoE module is NOT included.

Onboard TF card slot

Allows storage expansion via TF card

Luckfox Pico Pi series, onboard TF card slot

* Supports storage expansion only, does not support booting system from TF card.

Supports USB HUB Expansion

Flexible switching of USB-C / 4 × USB-A HOST ports via DIP switch

Luckfox Pico Pi series, onboard USB DIP switch

Onboard M.2 slot for 4G Module

The USB-A-4 port can be switched to 4G module M.2 slot via DIP switch, Supports SIM7600G-H-M.2 4G module

Luckfox Pico Pi series, onboard USB / M.2 slot DIP switch

Multiple Audio Interfaces

Onboard microphone + microphone expansion header + 3.5mm audio output jack, meets a variety of audio application scenarios

Luckfox Pico Pi series, onboard multiple audio interfaces

What’s On Board

Luckfox Pico Pi series, onboard components

  1. Core1106
    RV1106G3 core module,  Wi-Fi / Bluetooth wireless module
  2. 4G NET LED
    for indicating the operating status of the 4G module
  3. USER-LED
    for indicating system operating status in the default image, programmable indicator
  4. 4G-RESET button
    for rebooting the 4G module
  5. RESET button
    for rebooting the Core1106 system
  6. BOOT button
    Press it when powering on or resetting to enter download mode
  7. USB Type-C port
    for power supply and program burning
  8. RTC battery connector
  9. SIM card slot
  10. CSI camera interface
    MIPI CSI 2-lane
  1. 3.5mm audio jack
    Single channel audio output
  2. Microphone expansion header
  3. Onboard microphone
  4. USB-A Host ports
    Expands 4x USB-A ports via USB-HUB chip
  5. RJ45 100M Ethernet port
  6. DIP Switches
    Switch 1: for switching USB-C port and 4x USB-A ports
    Switch 2: for switching USB-A-4 port and 4G module M.2 slot
  7. 4G module M.2 slot
    Supports SIM7600G-H-M.2 4G module
  8. PoE module header
  9. 40PIN GPIO header
    Compatible with some Raspberry Pi HATs
  10. TF card slot
    Supports storage expansion only

Pin definition

Luckfox Pico Pi series, pin definition 1 Luckfox Pico Pi series, pin definition 2

Outline dimensions

Luckfox Pico Pi series, outline dimensions

Package content:

Weight: 0.056 kg

Luckfox Pico Pi A W

  1. Luckfox Pico Pi A W x1
  2. IPX 2.4G 2DB antenna x1
  3. 4G Module mounting screw x1
1Luckfox Pico Pi A W
2
3
