249 RSD (Sa PDV-om)
Spoljna vodootporna antena, 5dBi, magnetno postolje, LoRa Antena, 4G/3G/2G/LPWA, 868/915M
29 na zalihama
Opis
SKU: 24412

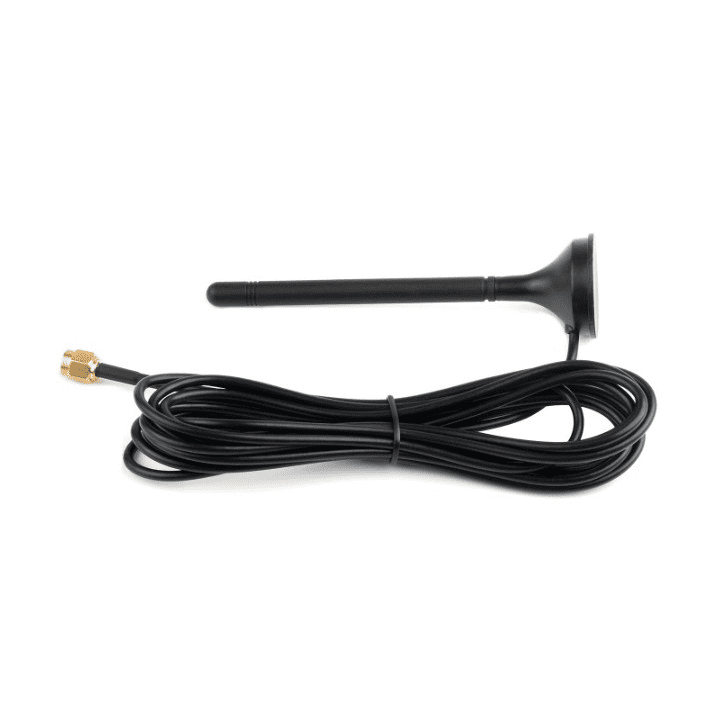

Part Number: 868/915M Magnet Mount Antenna
LPWA Outdoor Waterproof Antenna
High Gain, Outdoor Waterproof, With Magnetic Base
868/915M
Specifications
| NETWORK SUPPORT | 4G/3G/2G/LPWA | GAIN | 5dBi |
|---|---|---|---|
| FREQUENCY RANGE | 690~2700MHz | CONNECTOR | SMA male connector |
| POWER INPUT | 10W MAX | OUTPUT IMPEDANCE | 50Ω |
| SWR | ≤2.0 | POLARIZATION | Vertical |
| ANTENNA HEIGHT | 868/915M version: ~11cm | CABLE LENGTH | 3m |
| COLOR | Black | WATERPROOF | IP65 |
Design Details
Exchangeable antenna design
Magnetic base, firm attaching

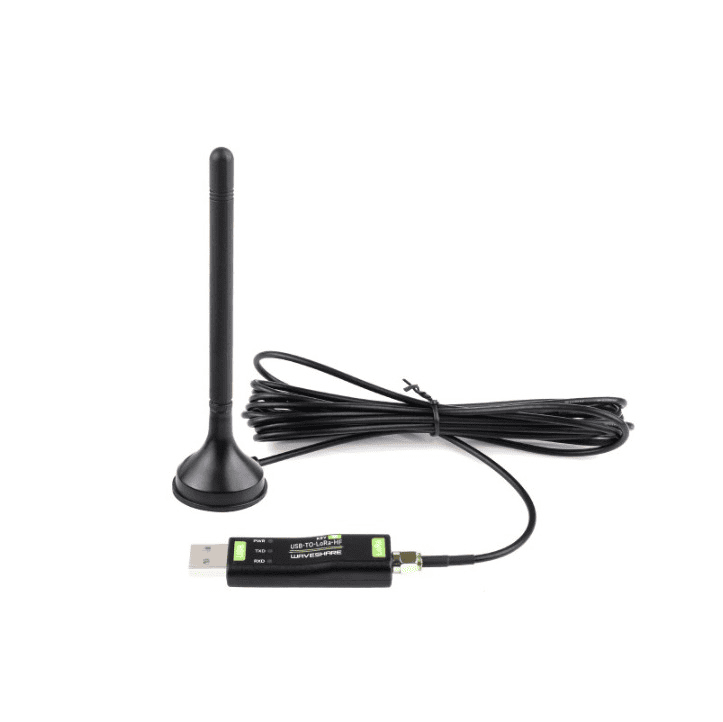

Application Examples
Connect to USB-TO-LoRa-HF
for reference only, please refer to the part list for detailed package content
Outline Dimensions
- PACKAGE CONTENT
Weight: 0.049 kg
868/915M Magnet Mount Antenna
868/915M Magnet Mount Antenna x1
Dodatne informacije
| Težina | 49 g |
|---|
Deklaracija
| Šifra: w24412 |
| Naziv: Antena |
| Vrsta: Waveshare |
| Zemlja porekla: Kina |
| Zemlja uvoza: Kina |
| Uvoznik: MALINA 314 doo, Beograd |
| Telefon: 061-640-2013 |
