Kamera IMX219 160° FOV, Jetson Nano, Raspberry Pi

2,499 RSD (Sa PDV-om)

Kamera IMX219 160° FOV, Jetson Nano, Raspberry Pi

Nema na stanju

Šifra proizvoda: w16662 Kategorija: Kamere (Waveshare) Oznaka: lok 1-4 Težina proizvoda: 20 g

Opis

SKU: 16662
Part Number: IMX219-160 Camera
Brand: Waveshare

Korisne informacije: www.waveshare.com/wiki/IMX219-160_Camera

IMX219 Camera series, 8MP, Applicable for Jetson Nano and Raspberry Pi, Options for FOV and Night Vision function

IMX219 8MP Camera series

Options for FOV | Compatible with Raspberry Pi and Jetson Nano series boards

The 8MP camera series is based on IMX219 sensor, options for FOV, night vision function support in specific versions (need to be used with infrared lighting). Compatible with Raspberry Pi series boards, Jetson Nano, and VisionFive2, etc. Suitable for AI projects such as Face recognition, Road mark detection and License plate recognition.

Specifications

Model	PIXELS	Sensor	CMOS size	INFRARED	FOV	Aperture	Focal length (mm)	DISTORTION	dimension	others
IMX219-77 Camera	8MP	IMX219	1/4inch	×	79.3°	2.0	2.85	<1%	25×24	4 screw holes, used for attachment, provides 3.3V power output
IMX219-77IR Camera				√	79.3°	2.0	2.85	<1%	25×24	4 screw holes, used for attachment, provides 3.3V power output, comes with Infrared LEDs
IMX219-120 Camera				×	120°	2.0	1.79	<13.6%	25×24	4 screw holes, used for attachment, provides 3.3V power output
IMX219-160 Camera				×	160°	2.35	3.15	<14.3%	25×24	4 screw holes, used for attachment, provides 3.3V power output
IMX219-160IR Camera				√	160°	2.35	3.15	<14.3%	25×24	4 screw holes, used for attachment, provides 3.3V power output, comes with Infrared LEDs
IMX219-160 IR-CUT Camera				√	162.4°	2.7	1.75	<-22.7%	32.04×26.44	4 screw holes, used for attachment, provides 3.3V power output, built in IR-CUT, comes with Infrared LEDs
IMX219-170 Camera				×	170°	2.4	2.2	<22%	32×32	4 screw holes, used for attachment
IMX219-200 Camera				×	200°	2.0	0.87	<11%	25×24	4 screw holes, used for attachment, provides 3.3V power output

* The IR cameras will take curious reddish pictures by daylight for lacking of IR filter in the CCD, yet that is the reason why the camera can see in the dark with IR LEDs

Multiple motherboards Support

Compatible with all Raspberry Pi boards, Jetson Nano and VisionFive2, etc.
extra FPC cable is required for Raspberry Pi 5, CM3/3+/4 and Zero series

IMX219-77 Camera
connecting with Raspberry Pi 4B

IMX219-120 Camera
connecting with Raspberry Pi 5

IMX219-170 Camera
connecting with CM4 IO Board

IMX219-200 Camera
connecting with Zero 2 W

IMX219-160 Camera
connecting with Jetson Nano Kit

IMX219-160IR Camera
connecting with Jetson Orin Kit

* for reference only, Raspberry Pi 4B, Raspberry Pi 5, Compute Module 4 IO Board, Zero 2 W, Jetson Nano Kit, Jetson Orin Kit, black FPC and yellow FPC are NOT included.

Product Show

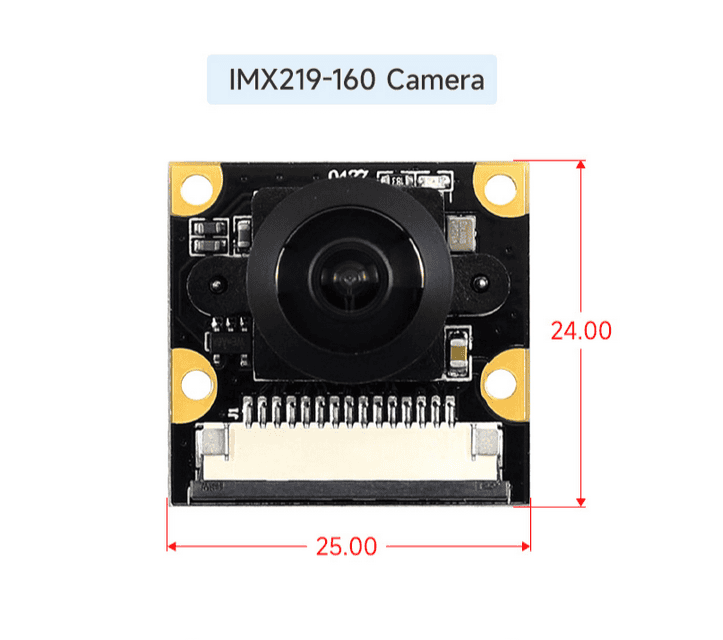

Outline dimensions

PACKAGE CONTENT

Weight: 0.015 kg

The included FFC is 16cm.

IMX219-160 Camera x1

15-pin FFC (opposite sides contact) x1

1

2
