Name: FT232 USB UART Board (Tip C), USB na UART (TTL), komunikacioni modul, USB-C konektor - malina314
SKU: w20646
Price: 790 RSD
Availability: InStock

FT232 USB UART Board (Tip C), USB na UART (TTL), komunikacioni modul, USB-C konektor

790 RSD (Sa PDV-om)

FT232 USB UART Board (Tip C), USB na UART (TTL), komunikacioni modul, USB-C konektor

8 na zalihama

Šifra proizvoda: w20646 Kategorija: 6. UART moduli Oznaka: lok 2-3 Težina proizvoda: 13 g

Opis

SKU: 20646
Part Number: FT232 USB UART Board (Type C)
Brand: Waveshare

Korisne informacije: FT232_USB_UART_Board_(Type_C)

FT232 USB To UART (TTL) Communication Module, USB-C Connector

FT232 USB-C To UART Module

adopts FT232RL, compatible with 3.3V/5V logic level

Features at a glance

Original FT232RL onboard
Supports Mac OS, Linux, Android, WinCE, Windows 7/8/8.1/10/11…
3x VCCIO power mode via jumper setting:
- VCCIO – 5V: 5V output
- VCCIO – 3.3V: 3.3V output
- open the jumper: powered from target board (3.3V-5V)

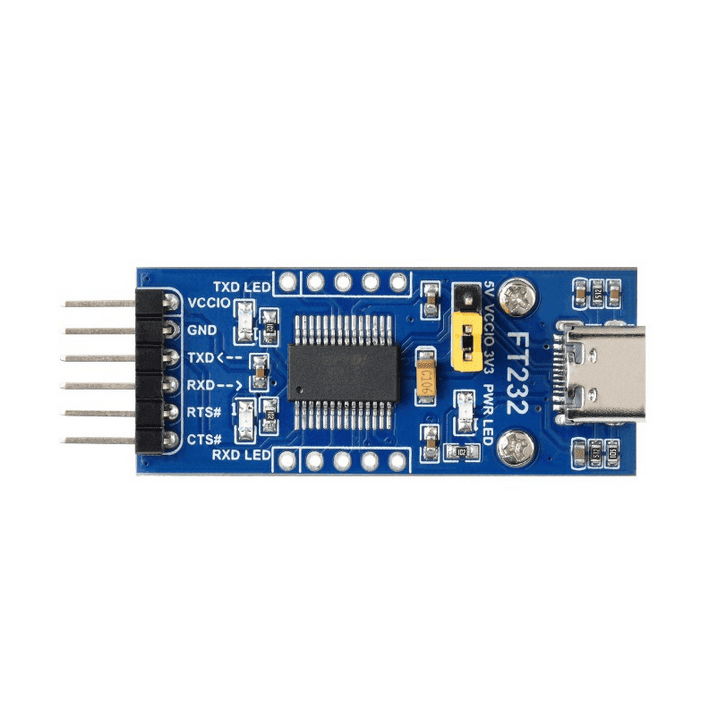

3x LED indicators: TXD, RXD, PWR

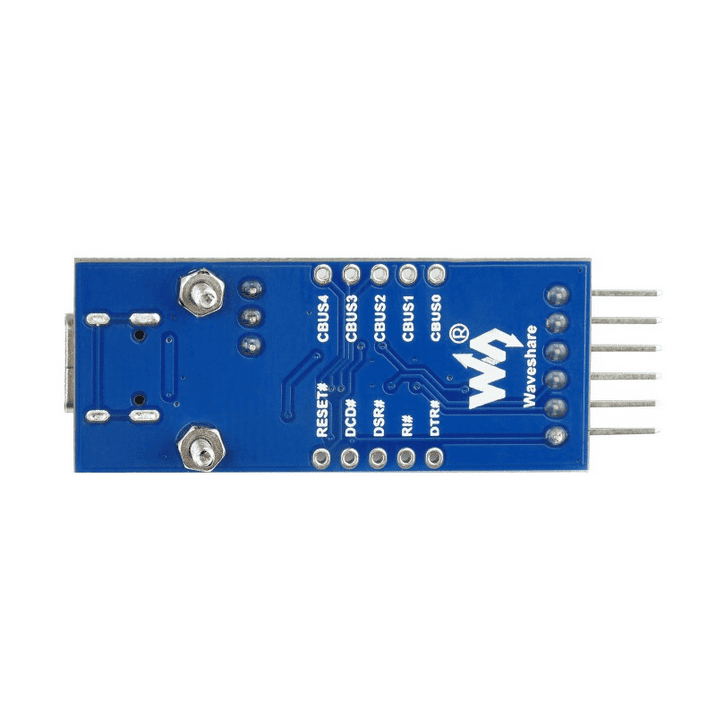

Pins accessible on pinheaders: TXD, RXD, RTS#, CTS#
Other pins are accessible on drilled holes, easily connected to user application system (the pin pitch is compatible with universal prototype board)

FT232 solution

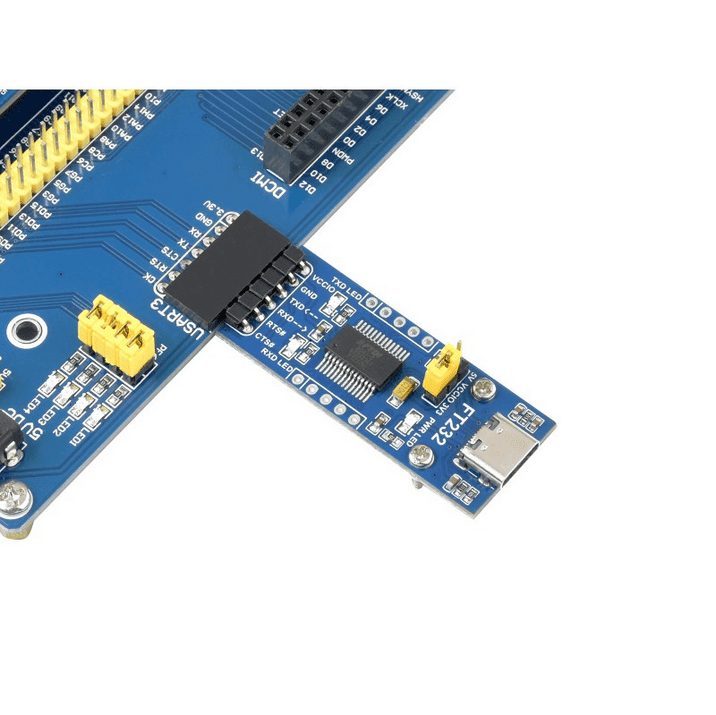

Hardware connection

In the case of working with MCU

VCCIO ↔ 3.3V or 5V output (the module is powered from USB, and the onboard jumper should be shorted to 3.3V or 5V)
GND ↔ GND
TXD ↔ MCU.RX (signal direction: MCU.RX << FT232 << PC.TX)
RXD ↔ MCU.TX (signal direction: MCU.TX >> FT232 >> PC.RX)
RTS ↔ MCU.CTS (signal direction: MCU.CTS << FT232 << PC.RTS)
CTS ↔ MCU.RTS (signal direction: MCU.RTS >> FT232 >> PC.CTS)

CAUTION: the module is compatible with TTL level ONLY, to avoiding any damage, please DON’T direct connect it to RS232 circuit.

Outline Dimensions
