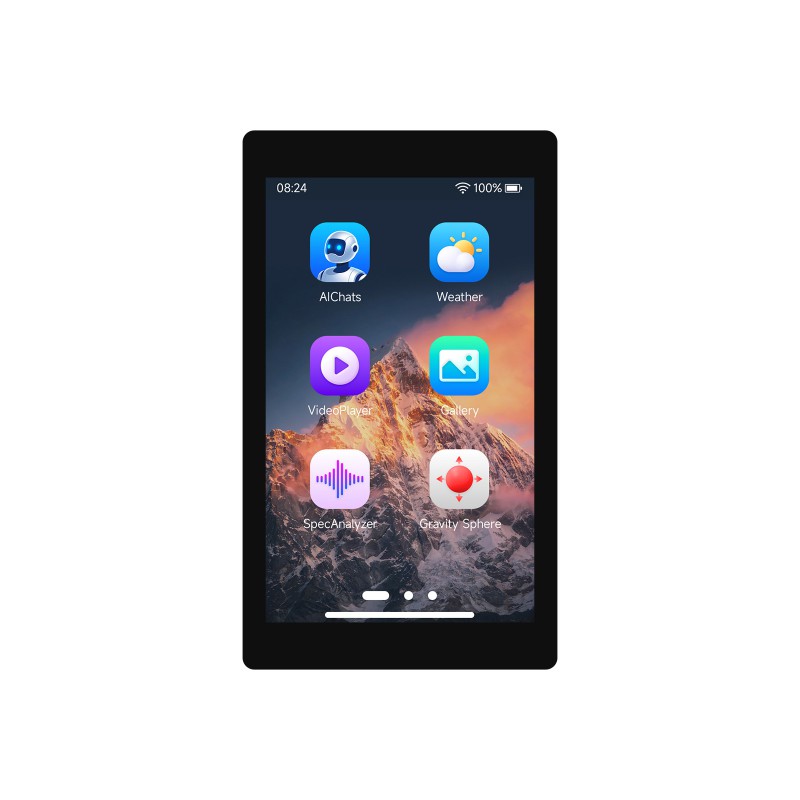

ESP32-P4 4.3 inča, 480 x 800, Touch, mikrofoni, zvučnik, Wi-Fi 6, BLE 5, kamera
ESP32-P4 4.3 inča, 480 x 800, Touch, mikrofoni, zvučnik, Wi-Fi 6, BLE 5, kamera - Slika 2
ESP32-P4 4.3 inča, 480 x 800, Touch, mikrofoni, zvučnik, Wi-Fi 6, BLE 5, kamera - Slika 3
ESP32-P4 4.3 inča, 480 x 800, Touch, mikrofoni, zvučnik, Wi-Fi 6, BLE 5, kamera - Slika 4
ESP32-P4 4.3 inča, 480 x 800, Touch, mikrofoni, zvučnik, Wi-Fi 6, BLE 5, kamera - Slika 5

5,599 RSD (Sa PDV-om)

ESP32-P4 4.3 inča, 480 x 800, Touch, mikrofoni, zvučnik, Wi-Fi 6, BLE 5, kamera

1 na zalihama

Šifra proizvoda: w33875 Kategorija: Oznaka: Težina proizvoda: 131 g

Opis

SKU: 33875
Part No.: ESP32-P4-WIFI6-Touch-LCD-4.3-C
Brand: Waveshare

Korisne informacije: docs.waveshare.com/ESP32-P4-WIFI6-Touch-LCD-4.3

ESP32-P4-WIFI6 4.3inch Development Board, 480 × 800 Resolution, 5-Point Touch, Onboard audio codec chip, Supports Wi-Fi 6 And BLE 5, Optional For OV5647 Camera

ESP32-P4-WIFI6 4.3inch Rounded Corner LCD Development Board

Based on ESP32-P4 and ESP32-C6 High-Performance Development Board

Integrated audio input/output module for AI interaction and voice control

ESP32-P4-WIFI6-Touch-LCD-4.3 development board Front main imagesESP32-P4-WIFI6-Touch-LCD-4.3, functional icons

The display orientation is portrait by default, 480 × 800 resolution (H × V).
Change the software config for landscape display.

Version Options

SP32-P4-WIFI6-Touch-LCD-4.3-CESP32-P4-WIFI6-Touch-LCD-4.3-C
With OV5647 camera

Features

The ESP32-P4-WIFI6-Touch-LCD-4.3 is a high-performance development board based on ESP32-P4 controller with RISC-V 32-bit dual-core and single-core processors. Equipped with 4.3inch 480 × 800 resolution IPS touch display, features rich human-machine interfaces including MIPI-CSI (with integrated Image Signal Processor), it also supports USB OTG 2.0 HS for high-speed connectivity and features an onboard 40PIN GPIO expansion header, compatible with some Raspberry Pi HATs for broader application adaptability.

The ESP32-P4 chip integrates the Digital Signature Peripheral and a dedicated Key Management Unit, ensuring secure data and operations. Specifically designed for high-performance and high-security applications, to meet the higher requirements of embedded applications such as Human-Machine interaction, efficient edge computing, and IO expansion.

  • High-performance MCU with RISC-V 32-bit dual-core and single-core processors
  • Onboard ESP32-C6-MINI module serving as a Wi-Fi 6 co-processor, extending Wi-Fi 6 and BLE 5 capabilities for ESP32-P4
  • 128KB HP ROM, 16KB LP ROM, 768KB HP L2MEM, 32KB LP Static RAM, 8KB TCM
  • Powerful image and voice processing capability. Provides image and voice processing interfaces including JPEG Codec, Pixel Processing Accelerator, Image Signal Processor, H264 encoder
  • 32MB PSRAM in the chip’s package, with onboard 32MB Nor Flash
  • Onboard Type-C ports, more convenient, better device compatibility
  • Onboard 4.3inch capacitive touch IPS display for clear color picture display, 480 × 800 resolution
  • Onboard 3.7V MX1.25 Lithium Batt recharge/discharge header
  • Adapting I2C, UART, USB and multiple GPIOs for external device connection and debugging, enabling flexible peripheral configuration
  • Onboard TF card slot for extended storage, high-speed data transfer, and enhanced flexibility, suitable for data logging and media playback, simplifying circuit design
  • Onboard camera interface, supporting OV5647 and other MIPI-CSI cameras
  • Security features: Secure Boot, Flash Encryption, cryptographic accelerators, and TRNG. Additionally, hardware access protection mechanisms help to enable Access Permission Management and Privilege Separation

LCD Specifications

DISPLAY PANEL IPS DISPLAY SIZE 4.3inch
Display Resolution 480 × 800 resolution Viewing angle 160°
Brightness 500cd/㎡ Contrast Ratio 1000:1
Communication Interface MIPI-DSI 2-lane Display Driver ST7701
Touch Type Capacitive touch Touch IC GT911

IPS Display Panel

Excellent Display Performance With 160° Wide Viewing Angle

ESP32-P4-WIFI6-Touch-LCD-4.3, IPS Display Panel

Capacitive 5-point touch

Suitable for developing various smart devices, enabling human-machine interaction functions

ESP32-P4-WIFI6-Touch-LCD-4.3 Capacitive 5 point touch screen

  1. up to 5-point touch, depending on the operating system
  2. up to 6H hardness toughened glass panel
  3. Optical Bonding, display well and dustproof

5MP OV5647 camera

Onboard MIPI CSI camera interface, optional for OV5647 camera, suitable for image capture, video surveillance, and other applications, meeting diverse requirements

ESP32-P4-WIFI6-Touch-LCD-4.3, Onboard 5MP OV5647 camera

Camera Specifications

Sensor OV5647 CMOS Size 1/4inch
Pixel 5MP Aperture F2.4
Focal Length 3.07mm FOV 72.9°
Distortion < 1.5% DOF 20cm ~ ∞
Image static image resolution: 2592 × 1944 pixel
Video Recording 1920 × 1080p at 30 fps, 1280 × 720p at 60 fps
640 × 480p at 60 fps, 640 × 480p at 90 fps

Wi-Fi 6 and Bluetooth module

onboard ESP32-C6-MINI module extends 2.4GHz Wi-Fi 6 and Bluetooth 5 (LE) for ESP32-P4, using SDIO interface protocol for stable connection and efficient transmission

ESP32-P4-WIFI6-Touch-LCD-4.3 Wi-Fi 6 and Bluetooth module

Audio input / output

Onboard ES8311 audio codec chip and ES7210 echo cancellation circuit for daily audio application scenarios

ESP32-P4-WIFI6-Touch-LCD-4.3 Audio input/output

Supports AI Speech Interaction

Allows access to online large model platforms such as DeepSeek, Doubao, etc.

ESP32-P4-WIFI6-Touch-LCD-4.3 Supports AI speech interactionESP32-P4-WIFI6-Touch-LCD-4.3 Supports AI speech interaction

What’s On Board

ESP32-P4-WIFI6-Touch-LCD-4.3 resources

  1. ESP32-P4-Core
    integrated ESP32-P4NRW32 and 32MB Nor Flash
  2. ESP32-C6-MINI-1 module
    SDIO interface protocol, extending Wi-Fi 6 / Bluetooth 5 (LE)
  3. ES7210 echo cancellation chip
    Echo cancellation algorithm chip, used to eliminate echo and improve audio capture accuracy
  4. ES8311 low-power audio codec chip
    for audio encoding and decoding
  5. MIPI CSI interface
    15PIN 1.0mm pitch interface for connecting MIPI-2lane camera
  6. 2.54mm 4PIN pads
    for ESP32-C6 module firmware burning
  7. RTC Batt header
    for connecting rechargeable RTC Batt (supports rechargeable RTC Batts only)
  8. POWER button
    Long press 2s to power off, short press to power on
  9. BOOT button
    Press it when powering on or resetting to enter download mode
  10. RESET button
  1. TF card slot
    SDIO 3.0 interface protocol
  2. MIPI DSI LCD interface
    for connecting MIPI 2-lane display
  3. Speaker header
    GH 1.25 2PIN connector (with lock), supports 8Ω 2W speaker (recommended)
  4. USB TO UART Type-C port
    for power supply, programming and debugging
  5. USB OTG Type-C port
    USB OTG 2.0 High Speed port
  6. Onboard microphones
    dual-microphone array input
  7. PWR LED indicator
    Power indicator
  8. MX1.25 Lithium Batt header
    MX1.25 2PIN connector, for 3.7V Lithium Batt, supports charging and discharging
  9. 40PIN expansion header
    2.54mm pitch, compatible with some Raspberry Pi HATs (may require a 2*20pin male-to-male header for connection)

Outline dimensions

ESP32-P4-WIFI6-Touch-LCD-4.3 outline dimensions

Package content:

Weight: 0.134 kg

  1. ESP32-P4-WIFI6-Touch-LCD-4.3 host x1
  2. GH1.25 2PIN 8Ω 2W speaker 50mm x1
  3. OV5647 camera x1
1 ESP32-P4-WIFI6-Touch-LCD-4.3
2 ESP32-P4-WIFI6-Touch-LCD-4.3
3 ESP32-P4-WIFI6-Touch-LCD-4.3
