Opis

SKU: 12824
Part Number: 3.5inch HDMI LCD
Brand: Waveshare
Wiki: 3.5inch_HDMI_LCD

3.5inch HDMI LCD

480×320, 3.5inch Resistive Touch Screen LCD, HDMI interface, IPS Screen, Designed for Raspberry Pi

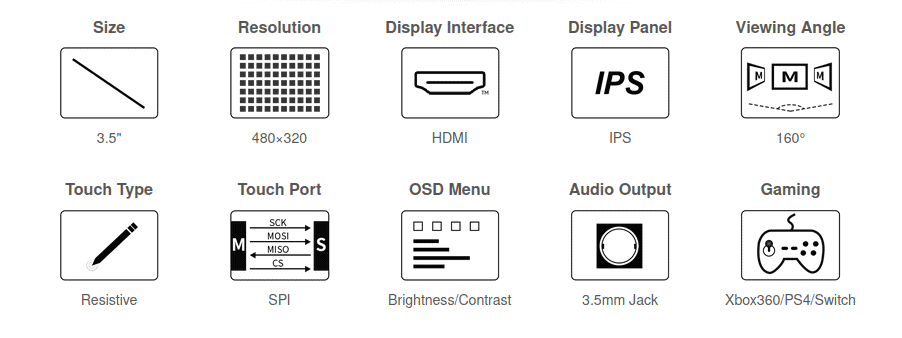

█ Features

• 480×320 hardware resolution, software configurable up to 1920×1080
• Resistive touch control
• IPS technology, high quality and perfect displaying from very wide viewing angle
• Compatible and Direct-connect with any revision of Raspberry Pi (except the Pi 1 model B or Pi Zero, which requires an HDMI cable)
• Drivers provided (works with your own Raspbian/Ubuntu/Kali/Retropie)
• Supports FBCP software driver as well, allows to config software resolution and set up dual-display
• Also works as a computer monitor, in this case, touch panel is unavailable and HDMI cable is required
• HDMI interface for displaying, no I/Os required (however, the touch panel still needs I/Os)
• Multi-languages OSD menu, for power management, brightness adjustment, contrast adjustment, etc.
• Supports 100-level backlight adjustment
• Supports HDMI audio output

█ Package Content

1.		2.		3.		4.
5.		6.

1. 3.5inch HDMI LCD x1
2. HDMI connector x1
3. HDMI to micro HDMI connector x1
4. Touch pen x1
5. Aluminium heat sink x1
6. Quick start sheet x1

Weight: 0.092 kg
