SKU: 22545
Part Number: 1.51inch Transparent OLED
Brand: Waveshare
Wiki: http://www.waveshare.com/wiki/1.51inch_Transparent_OLED

1.51inch Transparent OLED

1.51 inch Transparent OLED, 128×64 Resolution, SPI/I2C Interfaces, Light Blue Color Display, Embedded Independent Driver Chip, Comes with examples for Raspberry Pi, Arduino, STM32, etc.

---

█ Overview

• OLED transparent module, full viewing angle
• Adopts 4-wire SPI and I2C interface, better compatibility, fast data rate
• Comes with development resources (examples for Raspberry Pi/Arduino/STM32)

---

█ Specifications

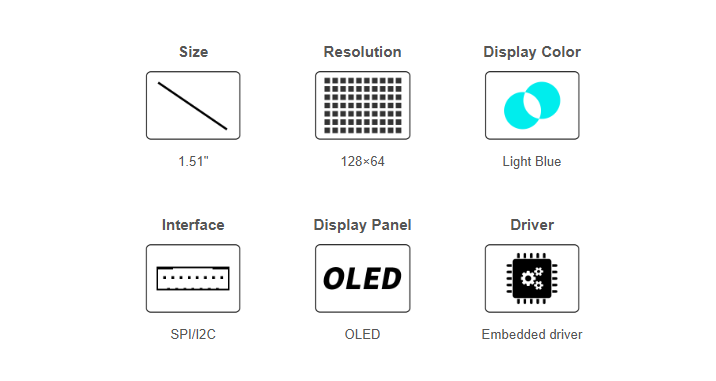

OPERATING VOLTAGE	3.3V / 5V	RESOLUTION	128 × 64 pixels*
PIXEL PITCH	0.274 × 0.274mm	MODULE SIZE	42.04 × 27.22mm
COMMUNICATION INTERFACE	4-wire SPI/I2C	DISPLAY SIZE	35.05 × 15.32 mm
DISPLAY PANEL	OLED	PIXEL SIZE	0.254 × 0.254 mm
DRIVER	Embedded driver	DRIVER BOARD SIZE	41 × 22.5 mm

* there is a non-transparent white area on the side of the cable, but it can be displayed

SPI And I2C Control Interface Switching

Supports Controller Boards Like Raspberry Pi/Arduino/STM32

VCC	Power (3.3V / 5V input)
GND	Ground
DIN	SPI / I2C data input
CLK	SPI / I2CI clock input
CS	Chip selection, low active
DC	Data/Command selection (high for data, low for command)
RST	Reset, low active

---

█ Hardware Connection

Connecting With Raspberry Pi

Connecting With Arduino Board

---

█ Usage Example
