CM5116032

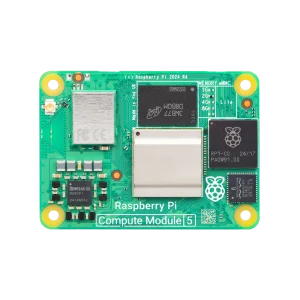

CM5116032 is a Raspberry Pi Compute Module 5. This is a system on module that delivers the power of Raspberry Pi 5 in a form factor ideal for embedded applications. It features up to 30 × GPIO supporting either 1.8V or 3.3V signalling and peripheral options such as 5 × UART, 5 × I2C, 5 × SPI, 1 × SDIO interface, 1 × DPI, 1 × I2S, 4 × PWM ch, 3 × GPCLK O/P.

16GB RAM capacity and 32GB eMMC
Form factor: 55 mm × 40 mm × 4.7mm module and 4 × M2.5 mounting holes
Broadcom BCM2712 quad-core 64-bit Arm Cortex-A76 (Armv8) SoC at 2.4GHz processor
2.4GHz/5.0GHz IEEE 802.11 b/g/n/ac wireless, Bluetooth 5.0, BLE
On-board electronic switch to select between PCB trace or external antenna
Gigabit Ethernet PHY supporting IEEE 1588, 1 × PCIe x1 root complex, Gen 2 (5Gbps)
1 × USB 2.0 and 2 × USB 3.0 ports, supporting simultaneous 5Gbps operation
Video: 2 × HDMI 2.0 ports and 2 × 4-lane MIPI ports and 4Kp60 HEVC decoder multimedia
Single +5V PSU input supports USB PD for up to 5A at 5V input power
Operating temperature range from-20°C to +85°C
