86 Type Wall-mounted Wireless AP, PoE, 1500 Mbps
86 Type Wall-mounted Wireless AP, PoE, 1500 Mbps - Slika 2
86 Type Wall-mounted Wireless AP, PoE, 1500 Mbps - Slika 3
86 Type Wall-mounted Wireless AP, PoE, 1500 Mbps - Slika 4
86 Type Wall-mounted Wireless AP, PoE, 1500 Mbps - Slika 5

3,999 RSD (Sa PDV-om)

86 Type Wall-mounted Wireless AP, PoE, 1500 Mbps

2 na zalihama

Šifra proizvoda: w32750 Kategorije: , Oznaka: Težina proizvoda: 185 g

Opis

SKU: 32750
Part No.: AP-AX1500G-POE

Korisne informacije: www.waveshare.com/wiki/AP-AX1500G-POE

86 Type Wall-mounted Wireless Access Point, Supports PoE Power Supply, Options For 1500 Mbps / 3000 Mbps Speed, With High-performance Processor, Optimized Antenna And RF Design

Wall-mounted Wireless Access Point

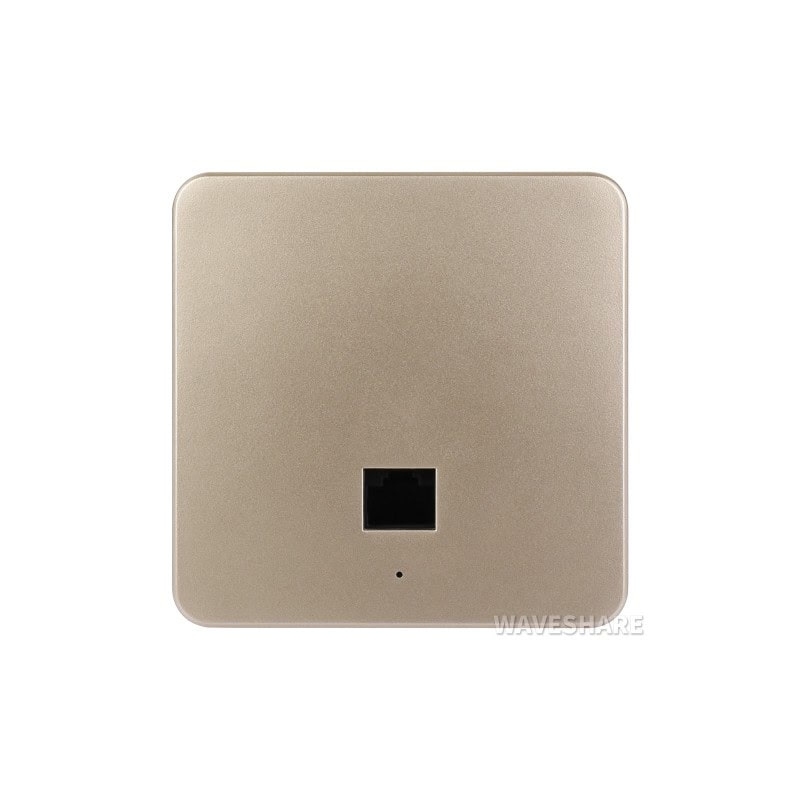

86 Type, Options for 1500M / 3000M wireless speed86 Type Wall-mounted Wireless Access Point, front view

Note: This product supports centralized management via the Gigabit-POE-Router-AC.

Features at a glance

This product is a wall-mounted panel-type Access Point (AP), equipped with a high-performance processor and optimized RF design to ensure excellent network coverage and stability. The PoE power supply simplifies wiring, reduces installation costs, and improves overall deployment efficiency. Provides options for 1500 Mbps or 3000 Mbps speed to meet various home or commercial application requirements.

Product Specifications

Model AP-AX1500G-POE
Product Description 1500M 86-Type Wireless Access Point
Total Band Rate 1500 Mbps
AP Mode Fit/Fat AP
Physical Port 1 × 10/100/1000 Base-T Ethernet WAN port (PoE power supply supported)
1 × 10/100/1000 Base-T Ethernet WAN port
Status Indicators Status and activity indicators
Physical Button Hidden reset button
Installation Method Standard 86 Type Wall-Mount
Color Light gold
Product Dimensions 86mm × 86mm × 42mm
Unit Weight 155g ±10%
Package Weight 185g ±10%
Bandwidth Support Up to 80 MHz
Theoretical Wireless Speed 2.4GHz: 300 Mbps
5GHz: 1201 Mbps
Recommended Connected Clients Recommended ≤ 40, Max 128
Antenna Type Built-in high-performance antenna
Maximum Transmit Power 2.4GHz: 21.5 ±1.5 dBm
5GHz: 23.5 ±1.5 dBm
Operating Environment Operating temperature: 0°C – 40°C
Storage temperature: -40°C – 70°C
Humidity Environment Operating humidity: 10%–90% RH, non-condensing
Storage humidity: 5%–90% RH, non-condensing

Conection Reference

86 Type Wall-mounted Wireless Access Point, Conection Reference

* the devices should be connected using standard 8-core Network cables of CAT 5 or higher.

Outline dimensions

86 Type Wall-mounted Wireless Access Point, outline dimensions

Package content:

Weight: 0.186 kg

OPTIONS 86-Type Wireless Access Point x1

AP-AXxx00G-POE

Dodatne informacije

Težina 185 g

Deklaracija

Šifra: w32750
Naziv: AP-AX1500G-POE
Vrsta: Waveshare
Zemlja porekla: Kina
Zemlja uvoza: Kina
Uvoznik: MALINA 314 doo, Beograd
Telefon: 061-640-2013
