Ai-WB2-32S-Kit is a development board based on the Ai-WB2-32S module. This module is equipped with a BL602 chip as the core processor and supports Wi-Fi&BT. It can be widely used in the Internet of Things(IoT), mobile devices, wearable electronic devices, smart homes, and other fields.



PRODUCT DETAILS

Ai-WB2-32S-Kit is a development board based on the Ai-WB2-32S module. This module is equipped with a BL602 chip as the core processor and supports Wi-Fi&BT. It can be widely used in the Internet of Things(IoT), mobile devices, wearable electronic devices, smart homes, and other fields.



Features

• Outstanding RF performance: Powerful BL602 chip and onboard PCB antenna support Wi-Fi 802.11b/g/n protocol and BLE 5.0 protocol
• Coexistence of multiple working modes: Support Station+BLE and Station+SoftAP+BLE working modes
• Low power consumption: Lowest as 12uA(deep sleep mode), with multiple sleeping modes available
• Ready for productization: universal AT instruction can be quickly compatible with other modules.
• User-friendly development environment: Supports secondary development and integrates Windows and Linux development environment



Description

Ai-WB2-32S-Kit is a development board designed for the Ai-WB2-32S module. Ai-WB2-32S is a Wi-Fi & BT module equipped with a BL602 chip as the core processor and supports Wi-Fi 802.11b/g/n protocol and BLE 5.0 protocol. The BL602 chip has a built-in 32-bit RISC CPU with low consumption, 276KB RAM, and a wide range of peripheral interfaces, including SDIO, SPI, UART, VDC, IR remote, PWM, ADC, DAC PIR, and GPIO. Outstanding Wi-Fi RF and BLE RF performance with spectrum range within 2400~2483.5MHZ.

Ai-WB2-32S-Kit support an operating temperature between -40℃ to 85℃, and a storage environment of -40℃~125℃m <90%RH. It supports three power supply modes: Type-C(recommended), 5V and GND pin, and 3V3 and GND pin, supplying current≥500mA.

Ai-WB2-32S-Kit also features high Wi-Fi security, which supports WPS/WEP/WPA/WPA2 Personal/WPA2 Enterprise/WPA3. It requires special precautions during handling due to its electrostatic sensitivity, the foam and electrostatic bag are provided for packaging.



Application

• Internet of Things(IoT)
• Mobile devices
• Wearable electronic devices
• Smart homes

Specification

Model	Ai-WB2-32S-Kit
Package	DIP-38
Size	55.05*25.4(±0.2)mm
Antenna	On-Board PCB antenna
Frequency	2400 ~ 2483.5MHz
Operation temperature	-40℃ ~ 85℃
Storage environment	-40℃ ~ 125℃，<90%RH
Power supply	Supply voltage 3.3V or 5V Supply current ≥ 500mA
Interface	UART/GPIO/ADC/PWM/I2C/SPI
I/O	15
Serial port rate	Default value: 115200 bps
Security	WPS/WEP/WPA/WPA2 Personal/WPA2 Enterprise/WPA3
Flash	Default: 4MByte

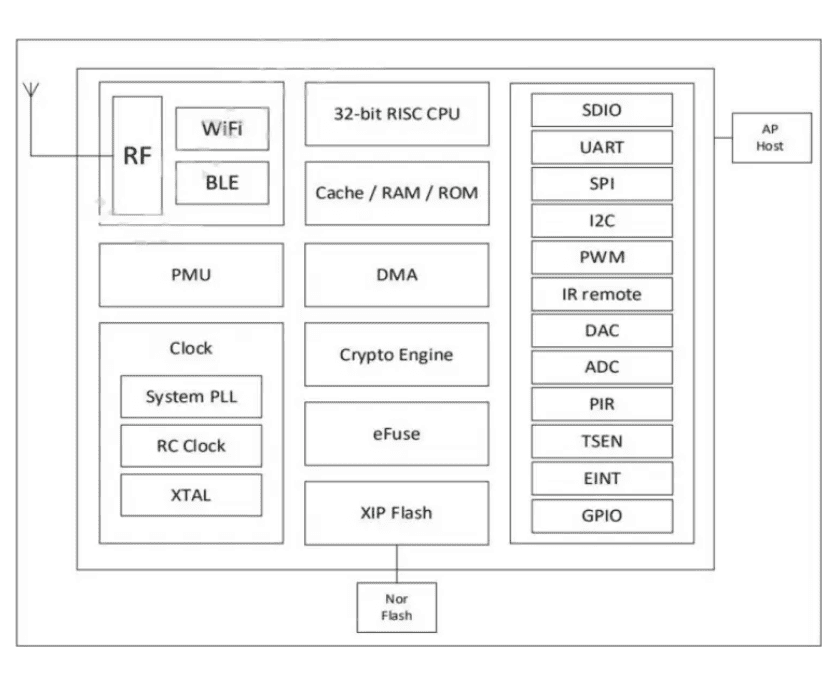

Hardware Overview



Partlist

Ai-WB2-32S-Kit

1



ECCN/HTS

HSCODE	8517799000
USHSCODE	/
UPC
EUHSCODE	/
COO	CHINA
