7 inča touch ekran za Raspberry Pi, DSI, 800×480

7 na zalihama

Šifra proizvoda: w25269 Kategorija: Oznaka: Težina proizvoda: 314 g

Opis

Kućište za ovaj ekran je ovde:
https://malina314.com/proizvod/raspberry-pi-4-kuciste-za-oficijelni-displej-2/

SKU: 25269
Part Number: 7inch DSI LCD (B)
Brand: Waveshare
Wiki: http://www.waveshare.com/wiki/7inch_DSI_LCD_(B)

7″ DSI Touch Display

7inch Capacitive Touch Display, DSI Interface, IPS Screen, 800×480, 5-Point Touch, With Case(Optional)

Posetite Wiki zbog pomoći oko načina povezivanja, instalacije, primera i drugih korisnih informacija pre kupovine. Možete nas i konsultovati na email office@malina314.com





Size Resolution Display Port Display Panel Viewing Angle
7″ 800×480 DSI IPS 170°
Touch Type Touch Points Touch Port Touch Panel Consumption
Capacitive 5-Points I2C Toughened Glass Low Power
Certification 1 Certification 2 Enslosure (Optional)
RoHS2.0 CE ABS

█ Version Options

The Display Only

█ Device & System Support

Raspberry Pi
Supports Raspberry Pi OS, 5-points touch, driver free
Supports Ubuntu / Kali / WIN10 IoT, single point touch, driver free
Supports Retropie / RoPieee, driver free

Supports Pi 5/4B/3B+/3A+/3B/2B/B+/A+, CM3/3+/4* (the case supports Pi 4B only, due to connector layout)

* some CM3/3+/4 base boards require extra adapter cable
VisionFive2
Supports Debian, single point touch, driver free
Core3566
Supports Debian / Ubuntu, 5-point touch, driver free

█ Connection Examples

Working With Raspberry Pi 5

Working With Raspberry Pi 4B

Working With Raspberry Pi 3B+

for reference only, the above controller boards are NOT included

█ Display

IPS Display Panel

Excellent Display Performance With 170° Wide Viewing Angle

High Quality Picture , Clear And Bright

New Generation IPS LCD Screen With More Natural Gradual Color Change

Display Color Is More Vivid

Better Visual Experience With More Color Details On The Screen

Capacitive 5-Point Touch

  1. up to 5-point touch, depending on the operating system
  2. up to 6H hardness toughened glass panel

Adjustable Brightness Via Software

█ Interface Introduction

The Display Only

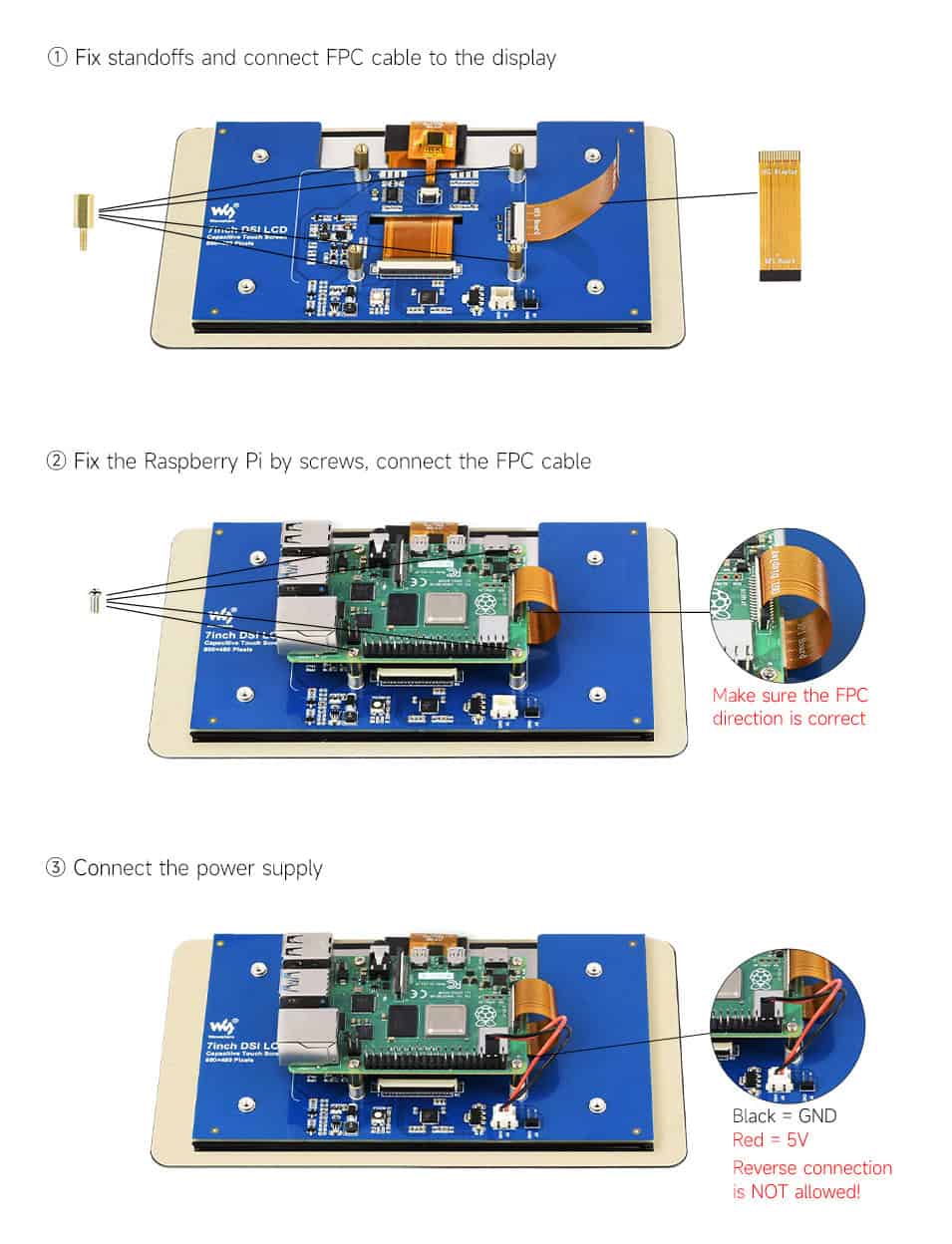

█ How To Install

█ Product Show

The Display Only

█ Dimensions

█ Package Content

  1. 7inch DSI LCD (B) x1
  2. FPC 15PIN 1.0 pitch 50mm (opposite sides) x1
  3. 2PIN to PH2.0 2PIN cable 6cm x1
  4. FPC 15PIN 1.0 pitch 160mm (opposite sides) x1
  5. Screws pack x1

Weight: 0.246 kg
