3.5 inča Touch Displej (F) za Raspberry Pi, IPS, 320×480, ojačano staklo
1 na zalihama
Opis
3.5inch Capacitive Touch Display (F) for Raspberry Pi, IPS Panel, 320×480 Resolution, 5-point Touch, Immersion Gold Process, Toughened Glass Panel
Part No.:3.5inch RPi LCD (F)
Brand:Waveshare
3.5inch Capacitive Touch Display for Raspberry Pi
Embedded ST7796S driver and GT911 capacitive touch control chip
Comes with examples for Raspberry Pi / Raspberry Pi Pico / ESP32 / Arduino

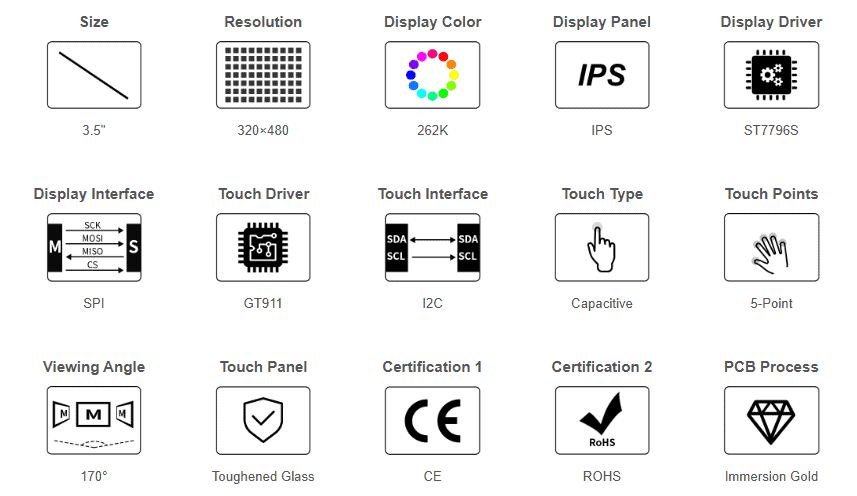

Features at a glance
- 262K color display with 320 × 480 resolution for excellent visual effects
- High touch screen transmittance, fast response, sensitive touch, and long lifetime
- Embedded with ST7796S driver chip and GT911 capacitive touch control chip, using SPI and I2C communication respectively, minimizes required IO pins
- Supports Pigo pin communication and GH1.25 13PIN cable connection
- Adopts Immersion Gold process, nice looking, with better durability
- Comes with online development resources and manual (examples for Raspberry Pi / Raspberry Pi Pico / ESP32 / Arduino)
Specifications
| Operating Voltage | 5V | Logic level | 3.3V |
|---|---|---|---|
| Display Driver | ST7796S | Touch Driver | GT911 |
| Display Interface | 4-wire SPI | Touch Interface | I2C |
| Display Panel | IPS | Display size | 3.5inch |
| Touch Type | Capacitive | Touch Points | 5-point touch |
| Display Size | 49.36 × 73.84mm | Touch panel Size | 61.00 × 92.44mm |
3.5inch Capacitive Touch Display
Embedded with ST7796S Driver Chip And GT911 Capacitive Touch Control Chip
Smooth and stable display
Highly compatible with Raspberry Pi desktop OS, supports smooth and stable operation
IPS Display Panel
Excellent Display Performance, 262K color, wide viewing angle
High Refresh Rate
supports 60Hz high Refresh Rate for a smoother operating experience
Suitable For Multiple Programming Platforms
Comes With Demos And Manuals For Raspberry Pi / Raspberry Pi Pico / ESP32 / Arduino
More Convenient For Development And Integration, with High Expansibility
Raspberry Pi
Raspberry Pi Pico
ESP32
Arduino
SPI and I2C Control Interfaces
Options For GH1.25 13PIN Connector Or Pigo Pin For Connecting The LCD To The Host Board
| Pin | Description | 13PIN Pin No. |
|---|---|---|
| TP_RST | Touch panel Reset pin, low active | 1 |
| TP_INT | Touch panel Interrupt pin | 2 |
| TP_SCL | Touch panel Clock pin | 3 |
| TP_SDA | Touch panel Data pin | 4 |
| LCD_BL | LCD Backlight pin | 5 |
| LCD_RST | LCD Reset pin, low active | 6 |
| LCD_DC | LCD Data/Command selection (high for data, low for command) | 7 |
| LCD_CS | LCD Chip Selection, low active | 8 |
| SCLK | SPI CLK pin | 9 |
| MOSI | SPI MOSI pin | 10 |
| MISO | SPI MISO pin | 11 |
| GND | Ground | 12 |
| VCC | 5V Power input | 13 |
Hardware Connection
Connecting with Raspberry Pi 5
Connecting with Raspberry Pi 4B
Connecting with Raspberry Pi Zero 2 W
Connecting with ESP32-S3 development board
* for reference only, the Raspberry Pi boards and ESP32-S3 development board are NOT included, please check the Package Content for the detailed part list.
Outline dimensions
Package content:
Weight: 0.071 kg
- 3.5inch RPi LCD (F) x1
- GH1.25 13Pin cable x1
- Screws pack x1
