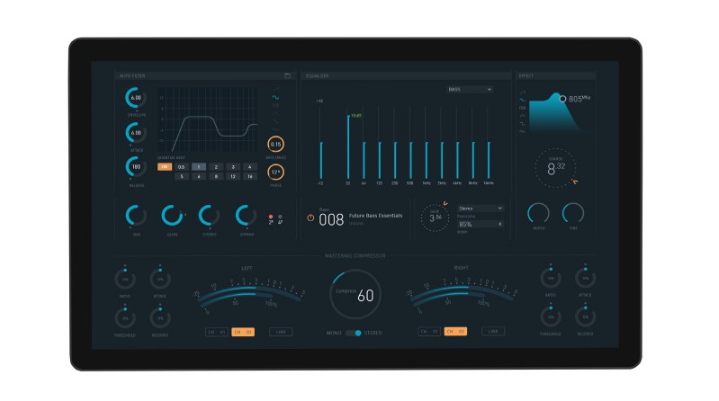

Monitor 21.5 inča, 1080x1920, HDMI, osetljiv na dodir, metalno kućište, zvučnici
Monitor 21.5 inča, 1080x1920, HDMI, osetljiv na dodir, metalno kućište, zvučnici - Slika 2
Monitor 21.5 inča, 1080x1920, HDMI, osetljiv na dodir, metalno kućište, zvučnici - Slika 3
Monitor 21.5 inča, 1080x1920, HDMI, osetljiv na dodir, metalno kućište, zvučnici - Slika 4
Monitor 21.5 inča, 1080x1920, HDMI, osetljiv na dodir, metalno kućište, zvučnici - Slika 5
Monitor 21.5 inča, 1080x1920, HDMI, osetljiv na dodir, metalno kućište, zvučnici - Slika 6
Monitor 21.5 inča, 1080x1920, HDMI, osetljiv na dodir, metalno kućište, zvučnici - Slika 7

34,990 RSD (Sa PDV-om)

Monitor 21.5 inča, 1080×1920, HDMI, osetljiv na dodir, metalno kućište, zvučnici

2 na zalihama

Šifra proizvoda: w24108 Kategorija: Oznaka: Težina proizvoda: 4858 g

Opis

SKU: 24108
Part Name: 21.5inch FHD Monitor (EU)
Brand: Waveshare
Wiki: http://www.waveshare.com/wiki/21.5inch_FHD_Monitor

21.5 inch FHD Monitor

21.5 inch FHD Monitor, With Case And Toughened Glass Cover, 1080×1920, HDMI, IPS, Various Devices & Systems Support

U zavisnosti od verzije na kućištu iza postoji prostor za montažu Raspberry Pi 4 ili Raspberry CM4 ploče sa svim konektorima.

Posetite Wiki zbog pomoći oko načina povezivanja, instalacije, primera i drugih korisnih informacija pre kupovine. Možete nas i konsultovati na email office@malina314.com

█ Version

Size Resolution Display Port Display Colour Viewing Angle
21.5″ 1080×1920 HDMI 16.7M 170°
Touch Type Touch Points Touch Port Touch Panel OSD Menu
Capacitive 10-Points USB-C Toughened Glass Brightness Contrast
Sound VESA Wall Mount Enclosure Touch Panel Tech Temperature Range
Hi-Fi Speaker 100 x 100 mm Aluminum Alloy Optical Binding -5 ~ 60 ℃






█ Device & System Support

Raspberry Pi

  • Supports Raspberry Pi OS, 10-point touch, driver free
  • Supports Ubuntu / Kali, single point touch, driver free

Jetson Nano

  • Supports Ubuntu, single point touch, driver free

PC

  • Supports Windows 11 / 10 / 8.1 / 8 / 7, 10-point touch, driver free

█ Connection Examples

Working With Raspberry Pi 4B

21.5inch FHD Monitor (B) | Built-In Pi4B-2GB

Working With Raspberry Pi Compute Module 4

21.5inch FHD Monitor (C) | Built-In CMPI4102008

Working With Jetson Nano

Working With Mini PC

█ Display

Configurable Display Orientation

The Display Orientation Is Portrait By Default, 1080×1920 Resolution (H×V).
Change The Software Config For Landscape Display

Wide Viewing Angle IPS Display Panel

Excellent Display & Color Performance
Wide Viewing Angle Up To 170°, Color Gamut Up To 72% NTSC

FHD High Resolution

1080×1920 Pixels, Clearer Display

  1. up to 10-point touch, depending on the operating system
  2. up to 6H hardness toughened glass panel
  3. Optical Bonding, display well and dustproof

Audio Feature

Built-In Ferrite Hi-Fi Speaker, Dual-Track Support

█ Interface Introduction

for reference only, the monitor arm is not included.

█ Application Scenarios

Suitable For Industrial, Commercial, Medical And Other Applications

█ Dimensions (mm)

█ Package Content

  1. 21.5inch FHD Monitor ×1
  2. USB-A to USB-C cable ~1m ×1
  3. HDMI flat cable ~1m ×1
  4. OPTIONS 12V 3A Power supply ×1
  5. Packaging box ×1

Weight: 4.038 kg

Dodatne informacije

Težina 4858 g

Deklaracija

Šifra: w24108
Naziv: Monitor 21.5 inča
Vrsta: Waveshare
Zemlja porekla: Kina
Zemlja uvoza: Kina
Uvoznik: MALINA 314 doo, Beograd
Telefon: 061-640-2013
