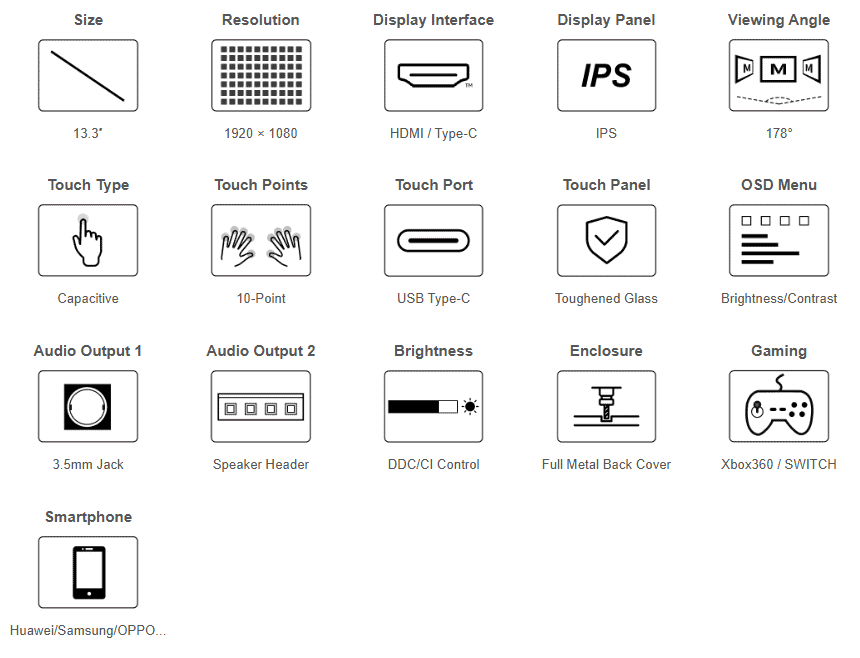

Connection Examples

Working with Full-Featured Type-C PC

Working with Full-Featured Type-C Smartphone

Working with Raspberry Pi 5 / 4B

Working with Raspberry Pi 3B+

Working with Jetson series board

How to Install

Prepare the accessories as shown above, here we take Raspberry Pi 5 as an example.

Step 1:
Connect the cables ①, ④, and ⑤ to the connectors on the back side of LCD display, shown in the picture above.

Step 2:
Install the Raspberry Pi 5 on the back cover via the screws included in the package.

Step 3:
Connect the HDMI adapter ② to the cable ① first (choose HDMI adapter ② or ③ according to your Raspberry Pi model), then insert it into the Raspberry Pi Micro HDMI port; Connect the cable ④ to the USB port of the Pi and connect the cable ⑤ to the GPIO 5V, 5V, GND pin header as shown above.

Step 4:
Complete the assembly as shown in the picture and ensure all connections are correct, then connect to a 5V power supply and power on.

* for reference only, the Raspberry Pi 5 is not included.

Full-featured Type-C interface

Supports audio and video transmission, plug and play. One cable is just enough for either computer dual-screen OR Smartphone wired projection

Computer Dual Screens For Collaborative Processing

One screen for work, one screen for study, without interfering with each other

* for reference only, please refer to the Package Content for detailed part list

IPS Wide Viewing Angle

IPS panel enhances the display and color performance of the monitor. 178° wide viewing angle, whether it is viewed vertically or horizontally, the display effect is still clear

Supports DDC/CI backlight adjustment

Smooth Gaming Experience

A good partner for the game consoles, play video games with a wider and clearer vision. Supports Xbox360 / PS4 / SWITCH etc. (Display and Sound Only)

10-Point Capacitive Touch

Interface Introduction

Outline Dimensions
