Ekran 10.1 inč, Touch, 1920×1200, ojačano staklo, HDMI, IPS
Ekran 10.1 inč, Touch, 1920×1200, ojačano staklo, HDMI, IPS - Slika 2
Ekran 10.1 inč, Touch, 1920×1200, ojačano staklo, HDMI, IPS - Slika 3
Ekran 10.1 inč, Touch, 1920×1200, ojačano staklo, HDMI, IPS - Slika 4
Ekran 10.1 inč, Touch, 1920×1200, ojačano staklo, HDMI, IPS - Slika 5

14,590 RSD (Sa PDV-om)

Ekran 10.1 inč, Touch, 1920×1200, ojačano staklo, HDMI, IPS

2 na zalihama

Šifra proizvoda: w28882 Kategorija: Oznaka: Težina proizvoda: 869 g

Opis

SKU:28882
Part No.:10.1EP-CAPLCD (EU)
Brand:Waveshare

Korisne informacije: www.waveshare.com/wiki/10.1EP-CAPLCD

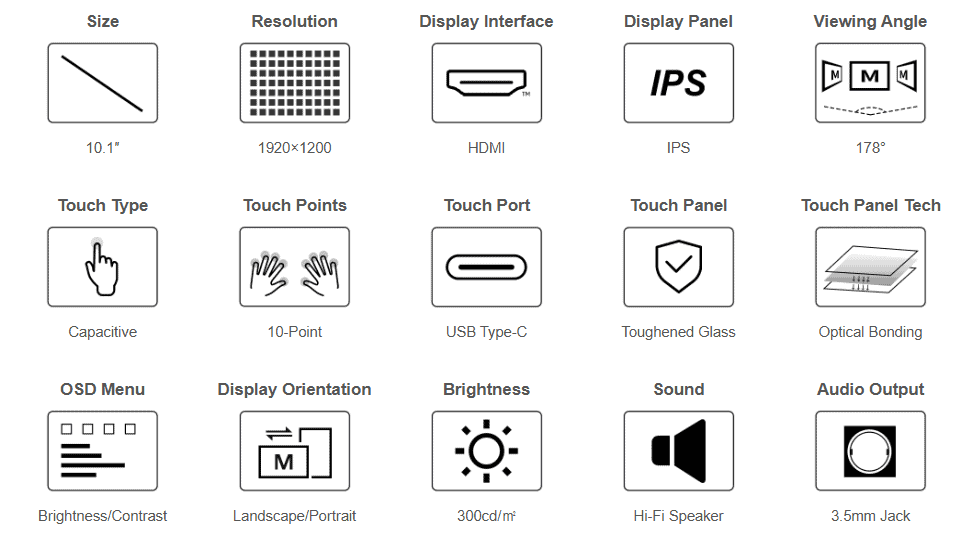

10.1inch High Resolution Capacitive Touch Display, 1920×1200, Optical Bonding Toughened Glass Panel, HDMI Display Interface, IPS Display, 10-Point Touch
10.1″ Capacitive Touch Display

High Resolution | Multi-Point Touch | Landscape/Portrait rotation

10.1inch Capacitive Touch Display, front and back view

Device & System Support

Raspberry Pi
Supports Raspberry Pi OS, 10-point touch, driver free
Supports Ubuntu / Kali / WIN10 IoT, single point touch, driver free
Supports Retropie, driver free

Supports all versions of Raspberry Pi

Jetson Series
Supports Ubuntu, single point touch, driver free
Supports Jetson Nano / TX2 / Xavier NX / Orin series boards
PC
Supports Windows 11 / 10 / 8.1 / 8 / 7, 10-point touch, driver free
Connection Examples

10.1inch Capacitive Touch Display, connecting with Raspberry Pi 4BWorking with Raspberry Pi 5 / 4B

10.1inch Capacitive Touch Display, connecting with Raspberry Pi 3B+Working with Raspberry Pi 3B+

10.1inch Capacitive Touch Display, connecting with Raspberry Pi ZeroWorking with Raspberry Pi Zero

10.1inch Capacitive Touch Display, connecting with PCWorking with PC

* for reference only, the above controller boards or hosts are NOT included

How to Install

the accessories for installing 10.1inch Capacitive Touch Display with Raspberry Pi 5Prepare the accessories as shown above, here we take Raspberry Pi 5 as an example

Install 10.1inch Capacitive Touch Display with Raspberry Pi 5, step 1

Step 1:
Connect the cable ①, ②, and ③ to the corresponding positions as shown in the picture above.

Install 10.1inch Capacitive Touch Display with Raspberry Pi 5, step 2

Step 2:
Install the Raspberry Pi 5 on the PCB board of the LCD, connect the HDMI adapter ④ to the cable ① (select HDMI adapter ④ or ⑤ according to your Raspberry Pi model) and then connect it to the Raspberry Pi Micro HDMI port.

Install 10.1inch Capacitive Touch Display with Raspberry Pi 5, step 3

Step 3:
Connect the cable ② to the USB port of the Pi and connect the cable ③ to the GPIO 5V and GND pins as shown above.

Install 10.1inch Capacitive Touch Display with Raspberry Pi 5, step 4

Step 4:
Complete the assembly as shown in the picture and ensure all connections are correct, then connect to a 5V power supply and power on.

* for reference only, the Raspberry Pi 5 is NOT included

Technology upgrade, higher resolution

1920 × 1200 resolution, provides clear image and vivid color display effect

10.1inch Capacitive Touch Display, supports higher resolution

IPS Display Panel

Excellent Display Performance With 178° Wide Viewing Angle

10.1inch Capacitive Touch Display, wide viewing angle IPS display panel

Capacitive 10-Point Touch

10.1inch Capacitive Touch Display, 10-Point capacitive touch

  1. up to 10-point touch, depending on the operating system
  2. up to 6H hardness toughened glass panel
  3. Optical Bonding, display well and dustproof
Freely rotate the display orientation

One-button switch between landscape and portrait display to meet the needs of different usage scenarios

10.1inch Capacitive Touch Display, allows freely rotating the display orientation

Dual-Track Speaker

Ferrite Hi-Fi Speaker, Larger Volume, Wider Sound Range, Better Sound Quality

Interface Introduction

10.1inch Capacitive Touch Display, interface introduction

Dimensions

10.1inch Capacitive Touch Display, outline dimensions

Package content:

Weight: 0.941 kg

Package Contains

  1. 10.1EP-CAPLCD ×1
  2. HDMI flat cable ~1m ×1
  3. USB Type-A to Type-C cable ~1m ×1
  4. Micro HDMI Adapter ×1
  5. HDMI Adapter ×1
  6. HDMI to Micro HDMI Adapter ×1
  7. PH1.25 4PIN to Type-A cable ×1
  8. Capacitive touch pen ×1
  9. 3PIN cable ×1
  10. HDMI-Cable-120mm (2pcs) ×1
  11. Cleaning cloth x1
  12. OPTIONS 5V 3A power supply ×1
  13. Screws pack x1

10.1EP-CAPLCD

Dodatne informacije

Težina 869 g

Deklaracija

Šifra: w28882
Naziv: Ekran 10.1inča
Vrsta: Waveshare
Zemlja porekla: Kina
Zemlja uvoza: Kina
Uvoznik: MALINA 314 doo, Beograd
Telefon: 061-640-2013
