Ekran 10 inča, univerzalni, osetljiv na dodir, 1280×800, ojačano staklo, HDMI / Type-C, kućište, zvučnici
Ekran 10 inča, univerzalni, osetljiv na dodir, 1280×800, ojačano staklo, HDMI / Type-C, kućište, zvučnici - Slika 2
Ekran 10 inča, univerzalni, osetljiv na dodir, 1280×800, ojačano staklo, HDMI / Type-C, kućište, zvučnici - Slika 3
Ekran 10 inča, univerzalni, osetljiv na dodir, 1280×800, ojačano staklo, HDMI / Type-C, kućište, zvučnici - Slika 4
Ekran 10 inča, univerzalni, osetljiv na dodir, 1280×800, ojačano staklo, HDMI / Type-C, kućište, zvučnici - Slika 5
Ekran 10 inča, univerzalni, osetljiv na dodir, 1280×800, ojačano staklo, HDMI / Type-C, kućište, zvučnici - Slika 6
Ekran 10 inča, univerzalni, osetljiv na dodir, 1280×800, ojačano staklo, HDMI / Type-C, kućište, zvučnici - Slika 7

13,290 RSD (Sa PDV-om)

Ekran 10 inča, univerzalni, osetljiv na dodir, 1280×800, ojačano staklo, HDMI / Type-C, kućište, zvučnici

21 na zalihama

Šifra proizvoda: w24484 Kategorija: Oznaka: Težina proizvoda: 1015 g

Opis

SKU: 24484
Part Name: 10.1HP-CAPLCD Monitor
Brand: Waveshare
Korisne informacije: http://www.waveshare.com/wiki/10.1HP-CAPLCD_Monitor

10.1″ Wide Color Gamut Touch Display

10.1inch Capacitive Touch Display, Wide Color Gamut, 1280×800, Optical Bonding Toughened Glass Panel, HDMI/Type-C Display Interface, 10-Point Touch, Aluminum Alloy Case

Posetite Wiki zbog pomoći oko načina povezivanja, instalacije, primera i drugih korisnih informacija pre kupovine. Možete nas i konsultovati na email office@malina314.com



Size Resolution Display Interface Display Panel Viewing Angle
10.1″ 1280×800 HDMI / Type-C IPS 178°
Touch Type Touch Points Touch Port Touch Panel Touch Panel Tech
Capacitive 10-Point USB Type-C Toughened Glass Optical Bonding
OSD Menu Brightness Audio Output Sound Enclosure
Brightness/ Contrast Supports DCC/CI control 3.5mm Jack Hi-Fi Speaker Aluminum Alloy
Smartphone VESA Wall Mount
Huawei/ Samsung/ OPPO… 75 × 75mm

█ Device & System Support

Raspberry Pi

  • Supports Raspberry Pi OS, 10-point touch, driver free
  • Supports Ubuntu / Kali/ WIN10 IoT, single point touch, driver free
  • Supports Retropie, driver free
  • Supports all versions of Raspberry Pi

Jetson Nano

  • Supports Ubuntu, single point touch, driver free

VisionFive2

  • Supports Debian, single point touch, driver free

PC

  • Supports Windows 11 / 10 / 8.1 / 8 / 7, 10-point touch, driver free

Smartphone

  • Huawei, Samsung, OPPO, LG…(wired projection)

█ Connection Examples

Working With Raspberry Pi 4B

Working With Raspberry Pi 3B+

Working With Raspberry Pi Zero 2 W

You need to prepare additional mini HDMI adapter and USB cable

Working With Jetson Nano

Working With PC *

Working With Smartphone *

  • Please make sure that the smartphone or PC itself features full-featured Type-C interface
  • For reference only, the above controller boards or hosts are NOT included

█ Display

IPS Display Panel

Excellent Display Performance With 178° Wide Viewing Angle

Wide Color Gamut LED Technology

Wider Color Gamut, More Pure Chroma
Color Gamut Of This Display Is Up To NTSC 82%
Chroma Increases 58.3%
Makes The Color More Pure, More Vivid

Capacitive 10-Point Touch

  1. up to 10-point touch, depending on the operating system
  2. up to 6H hardness toughened glass panel
  3. Optical Bonding, display well and dustproof

Supports DDC/CI Brightness Adjustment

Full-Featured Type-C Interface

Audio And Video Transmission In One Connection, Plug And Play,
Instantly Zoom In The Smartphone Screen
(For Supported Mobile Phone Models, Please Contact Customer Service)

Computer Dual Screen For Collaborative Processing

One Screen For Work, One Screen For Entertainment, Without Interfering With Each Other

Dual-Track Speaker

Ferrite Hi-Fi Speaker, Larger Volume
Wider Sound Range, Better Sound Quality

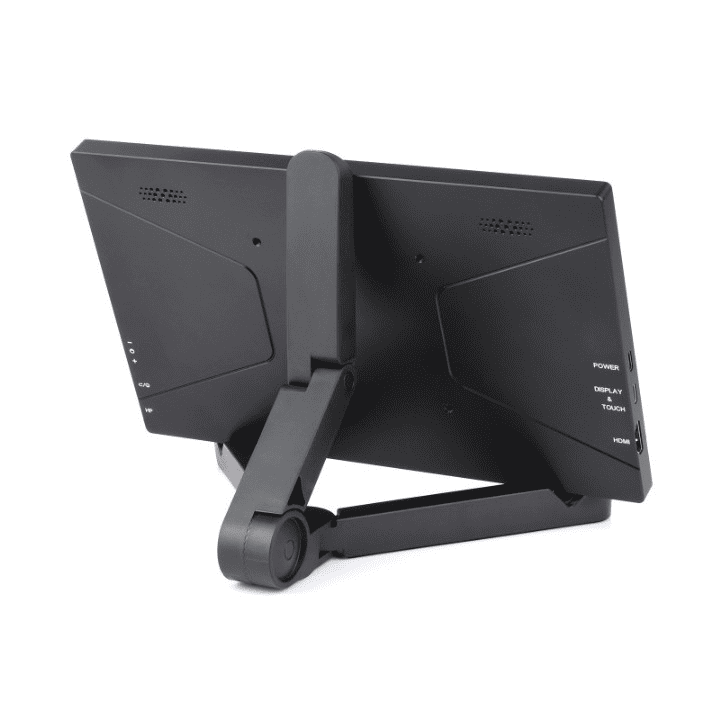

Comes With Triangular Stand

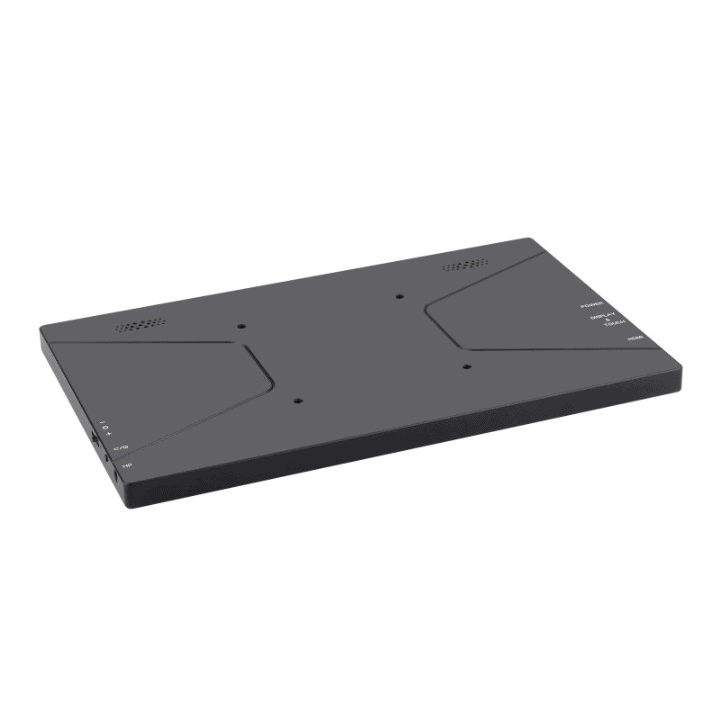

VESA Mounting Support

Interface Introduction

Product Show

█ Appearance and Dimensions

█ Package Content

  1. 10.1HP-CAPLCD Monitor ×1
  2. HDMI flat cable ~1m ×1
  3. HDMI to Micro HDMI Adapter ~1m ×1
  4. USB-A to USB-C cable ~1m ×1
  5. USB-C to USB-C cable ×1
  6. Triangular stand ×1

Weight: 0.809 kg

Dodatne informacije

Težina 1015 g

Deklaracija

Šifra: w24484
Naziv: Ekran 10 inča
Vrsta: Waveshare
Zemlja porekla: Kina
Zemlja uvoza: Kina
Uvoznik: MALINA 314 doo, Beograd
Telefon: 061-640-2013
