1.83 inča Touch, Micro LCD, 240x284, IPS, SPI/I2C
1.83 inča Touch, Micro LCD, 240x284, IPS, SPI/I2C - Slika 2
1.83 inča Touch, Micro LCD, 240x284, IPS, SPI/I2C - Slika 3
1.83 inča Touch, Micro LCD, 240x284, IPS, SPI/I2C - Slika 4
1.83 inča Touch, Micro LCD, 240x284, IPS, SPI/I2C - Slika 5

1,790 RSD (Sa PDV-om)

1.83 inča Touch, Micro LCD, 240×284, IPS, SPI/I2C

1 na zalihama

Šifra proizvoda: w33985 Kategorija: Oznaka: Težina proizvoda: 28 g

Opis

SKU: 33985
Part No.: 1.83inch Touch LCD Module
Brand: Waveshare

Korisne informacije: https://docs.waveshare.com/1.83inch_Touch_LCD_Module

1.83inch Touch LCD Display Module, Micro LCD Display, 240×284 Resolution, IPS, SPI And I2C Communication, 262K Display Color

1.83inch Touch LCD Display Module

Embedded ST7789P driver and CST816D capacitive touch control chip

Comes with examples for Raspberry Pi, ESP32S3, Pico, Arduino, STM32, etc.1.83inch Touch LCD display, front view

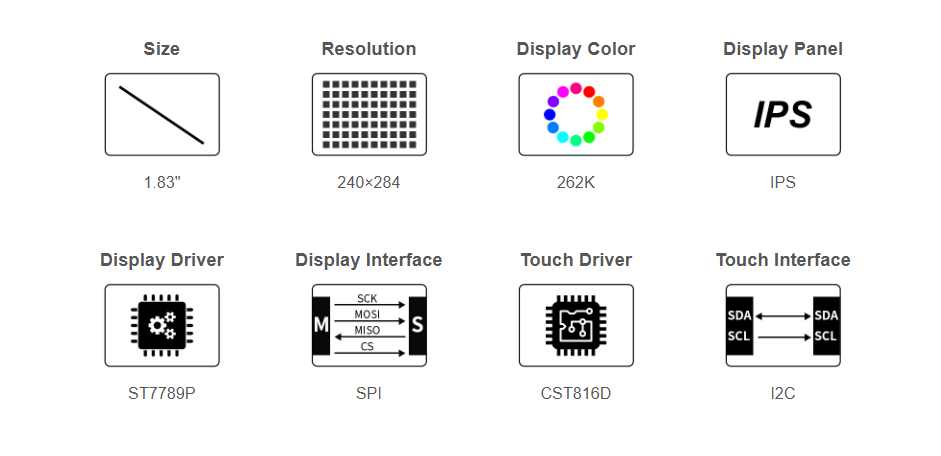

Features at a glance

  • 240×284 resolution, 262K colors, clear and colorful displaying effect
  • High touch screen transmittance, fast response and long lifetime
  • Embedded ST7789P driver chip and CST816D capacitive touch control chip, using SPI and I2C communication respectively, minimizes required IO pins, supports controller boards like Raspberry Pi / ESP32S3 / Raspberry Pi Pico / Arduino / STM32
  • Comes with online development resources and manual (examples for Raspberry Pi / ESP32 / Raspberry Pi Pico / Arduino / STM32)

Specifications

Operating voltage 3.3V / 5V Resolution 240 × 284 pixels
Display Driver ST7789P Touch Driver CST816D
Display Interface 4-wire SPI Touch Interface I2C
DISPLAY PANEL IPS Touch Type Capacitive touch
Display size 29.52 × 34.93mm PIXEL SIZE 0.126 × 0.126mm
Module size 35.00 × 42.00mm

Onboard Voltage Translator

Compatible With 3.3V / 5V Power Input

1.83inch Touch LCD display, onboard voltage translator

SPI and I2C Control Interfaces

Options For 12PIN Connector Or 18PIN FPC Slot For Connecting The LCD To The Host Board1.83inch Capacitive Touch LCD display, pin description

Pin Description 12PIN
Pin No.		 18PIN
Pin No.
VCC Power (3.3V / 5V input) 1 1
GND Ground 2 3
MOSI SPI MOSI pin 3 5
SCLK SPI CLK pin 4 4
LCD_CS LCD chip selection, low active 5 9
LCD_DC LCD data/command selection (high for data, low for command) 6 7
LCD_RST LCD reset pin, low active 7 8
LCD_BL LCD backlight pin 8 2
TP_SDA Touch panel data pin 9 14
TP_SCL Touch panel clock pin 10 13
TP_RST Touch panel reset pin, low active 11 12
TP_INT Touch panel interrupt pin 12 15

Usage Examples

Connecting with Raspberry Pi 5

1.83inch Touch LCD display usage demo, connecting with Raspberry Pi 5

Connecting with ESP32-S3-AUDIO-Board

1.83inch Touch LCD display usage demo, connecting with ESP32-S3-AUDIO-Board

* for reference only, please refer to the package content for the detailed part list.

Outline dimensions

1.83inch Touch LCD display, outline dimensions

Package content:

Weight: 0.02 kg

  1. 1.83inch Touch LCD Module x1
  2. GH1.25 12Pin cable x1
11.83inch Touch LCD Module
2

Dodatne informacije

Težina 28 g

Deklaracija

Šifra: w33985
Naziv: 1.83inch Touch LCD
Vrsta: Waveshare
Zemlja porekla: Kina
Zemlja uvoza: Kina
Uvoznik: MALINA 314 doo, Beograd
Telefon: 061-640-2013
