1.54 inča e-Paper ekran (G), 200x200, Red/Yellow/Black/White, SPI
1.54 inča e-Paper ekran (G), 200x200, Red/Yellow/Black/White, SPI - Slika 2
1.54 inča e-Paper ekran (G), 200x200, Red/Yellow/Black/White, SPI - Slika 3
1.54 inča e-Paper ekran (G), 200x200, Red/Yellow/Black/White, SPI - Slika 4
1.54 inča e-Paper ekran (G), 200x200, Red/Yellow/Black/White, SPI - Slika 5

1,290 RSD (Sa PDV-om)

1.54 inča e-Paper ekran (G), 200×200, Red/Yellow/Black/White, SPI

1 na zalihama

Šifra proizvoda: w30475 Kategorija: Oznaka: Težina proizvoda: 25 g

Opis

1.54inch e-Paper display (G), e-ink display, 200×200, Red/Yellow/Black/White, SPI Interface

SKU: 30475
Part No.: 1.54inch e-Paper Module (G)
Brand: Waveshare

1.54″ e-Paper (G)

low power, wide viewing angle, paper-like effect without electricity

Ideal for price tags, shelf labels, industrial instruments…

1.54inch e-Paper display (G) with driver board, front view

Note: the driver board is optional, please refer to the Package Content for detailed part list
1.54inch e-Paper Module (G)
1.54 inch e-Paper Module (G)
with driver board

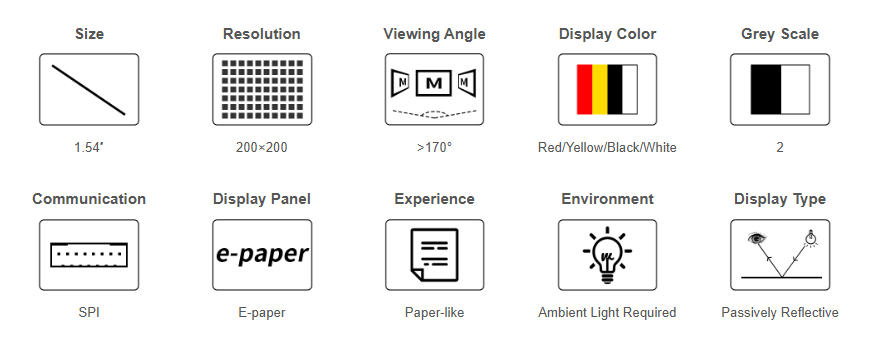

Features at a glance

  • No backlight, keeps displaying last content for a long time even when power down
  • Ultra low power consumption, basically power is only required for refreshing
  • Comes with online development resources and manual (driver board circuit diagram, examples for Raspberry Pi/Jetson Nano/Arduino)
  • Optional for e-Paper driver board:
    • Adapting SPI interface for connecting with controller boards like Raspberry Pi/Jetson Nano/Arduino, etc.
    • Onboard voltage translator, compatible with 3.3V / 5V MCUs

Specifications

operating voltage Raw display: 3.3V display color Red/Yellow/Black/White
with driver board: 3.3V/5V
interface 3-wire SPI, 4-wire SPI grey scale 2
outline dimensions Raw display: 37.32 × 31.8 × 1.00 mm fast refresh time 15s
with driver board: 48.00 × 33.00mm full refresh time 20s
display size 27.0 × 27.0mm refresh power <30mW
DOT PITCH 0.135 × 0.135mm standby current <0.01uA (almost none)
RESOLUTION 200 × 200 pixels viewing angle >170°

Advantages of EINK

E-paper display utilizes microcapsule electrophoretic technology for displaying, the principle is: charged particles suspended in clear fluid will move to sides of microcapsule when electric field is applied, making the microcapsule become visible by reflecting ambient light, just as traditional printed paper.
E-paper display will clearly display images/texts under lamplight or natural light, requires no backlight, and features nearly up to 180° viewing angle. It is usually used as e-reader due to its paper-like effect.

e-Paper driver board

Onboard SPI Control Interface, For Use With Controller Boards Like Raspberry Pi/Jetson Nano/Arduino

1.54inch e-Paper display (G) with driver board, onboard SPI control interface

VCC Power (3.3V / 5V input)
GND Ground
DIN SPI MOSI pin
CLK SPI SCK pin
CS SPI chip selection, low active
DC Data/Command selection (high for data, low for command)
RST External reset, low active
BUSY Busy status output pin

Onboard Voltage Translator

Compatible With 3.3V / 5V MCUs

1.54inch e-Paper display (G) with driver board, onboard voltage translator

Application examples

Suitable for price Tags, asset/equipment Tags, shelf labels, conference name tags…

Outline dimensions

1.54inch e-Paper Module (G)

1.54inch e-Paper display (G) with driver board, outline dimensions

PACKAGE CONTENT:

Weight: 0.019 kg

1.54inch e-Paper Module (G)

  1. 1.54inch e-Paper Module (G) x1
  2. PH2.0 8PIN cable x1
11.54inch e-Paper Module (G)
2

Dodatne informacije

Težina 25 g

Deklaracija

Šifra: w30475
Naziv: 1.54inch e-Paper Module (G)
Vrsta: Waveshare
Zemlja porekla: Kina
Zemlja uvoza: Kina
Uvoznik: MALINA 314 doo, Beograd
Telefon: 061-640-2013
