1.47inch LCD Display Module With Touch Panel, Micro LCD Display, 172×320 Resolution, IPS, SPI And I2C Communication, 262K Display Color

SKU: 30499
Part No.: 1.47inch Touch LCD
Brand: Waveshare

Korisne informacije: www.waveshare.com/wiki/1.47inch_Touch_LCD

1.47inch LCD Display Module With Touch panel, Micro LCD Display, 172×320 Resolution, IPS, SPI And I2C Communication, 262K Display Color

1.47inch Touch LCD Display Module

Embedded JD9853 driver and AXS5106L capacitive touch control chip

Comes with examples for Raspberry Pi, ESP32S3, Pico, Arduino, etc.

1.47inch Touch LCD display, front view

Features at a glance

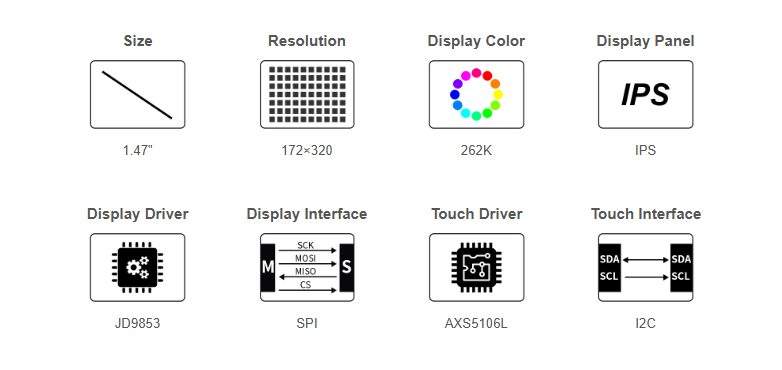

  • 172×320 resolution, 262K colors, clear and colorful displaying effect
  • High touch screen transmittance, fast response and long lifetime
  • Embedded JD9853 driver chip and AXS5106L capacitive touch control chip, using SPI and I2C communication respectively, minimizes required IO pins, supports controller boards like Raspberry Pi / ESP32S3 / Raspberry Pi Pico / Arduino
  • Comes with online development resources and manual (examples for Raspberry Pi / ESP32S3 / Raspberry Pi Pico / Arduino)

Specifications

Operating voltage 3.3V / 5V Resolution 172 × 320 pixels
Display Driver JD9853 Touch Driver AXS5106L
Display Interface 4-wire SPI Touch Interface I2C
DISPLAY PANEL IPS Touch Type Capacitive
Display size 17.75 × 32.93mm Module size 22.05 × 41.69mm

Onboard Voltage Translator

Compatible With 3.3V / 5V Power Input

1.47inch Touch LCD display, onboard voltage translator

SPI and I2C Control Interfaces

Embedded JD9853 driver and AXS5106L capacitive touch control chip

1.47inch Touch LCD display, pin definitions

VCC Power (3.3V / 5V input)
GND Ground
MISO SPI MOSI pin
MOSI SPI MOSI pin
SCLK SPI Clock pin
LCD_CS LCD Chip Selection, low active
LCD_DC LCD Data/Command selection (high for data, low for command)
LCD_RST LCD Reset, low active
LCD_BL LCD Backlight
TP_SDA TP Data pin
TP_SCL TP Clock pin
TP_INT TP Interrupt pin
TP_RST TP Reset, low active

Usage Example

Connecting with Raspberry Pi 5

1.47inch Touch LCD display usage demo, connecting with Raspberry Pi 5

Connecting with ESP32-S3

1.47inch Touch LCD display usage demo, connecting with ESP32-S3

* for reference only, the Raspberry Pi 5 and ESP32-S3 board are NOT included.

Outline dimensions

1.47inch Touch LCD display, outline dimensions

Package content:

Weight: 0.014 kg

  1. 1.47inch Touch LCD x1
  2. SH1.0 13PIN cable ~100mm x1
  3. FFC cable x1
11.47inch Touch LCD
2
3
